描述

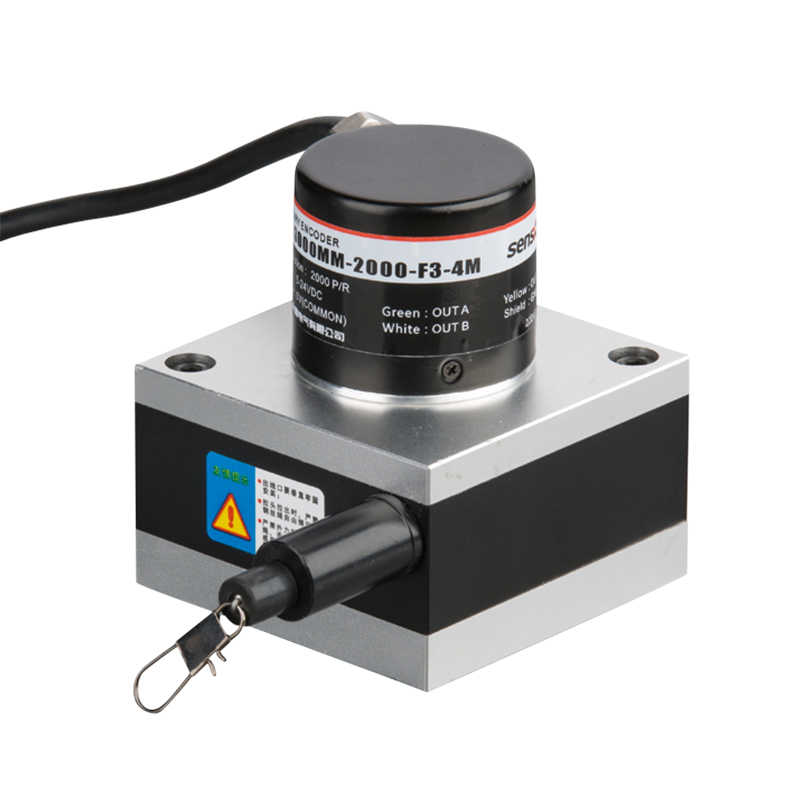

LX78S Draw Wire Encoder ensures high-accuracy feedback in compact settings. The LX78S Draw Wire Encoder features corrosion-resistant construction, various resolutions, and multiple output formats. Thanks to its small size, the LX78S Draw Wire Encoder is ideal for hydraulic cylinders, valve detection, automotive lifts, and testing machines.
Features
- Outer shell is wear-resistant, corrosion-resistant
- Small size for easy installation and accurate measurement
- Multiple output types
Applications
- Hydraulic cylinder stroke detection
- Valve opening measurement
- Automobile lift detection
- Automated warehousing
- Testing machine measurement

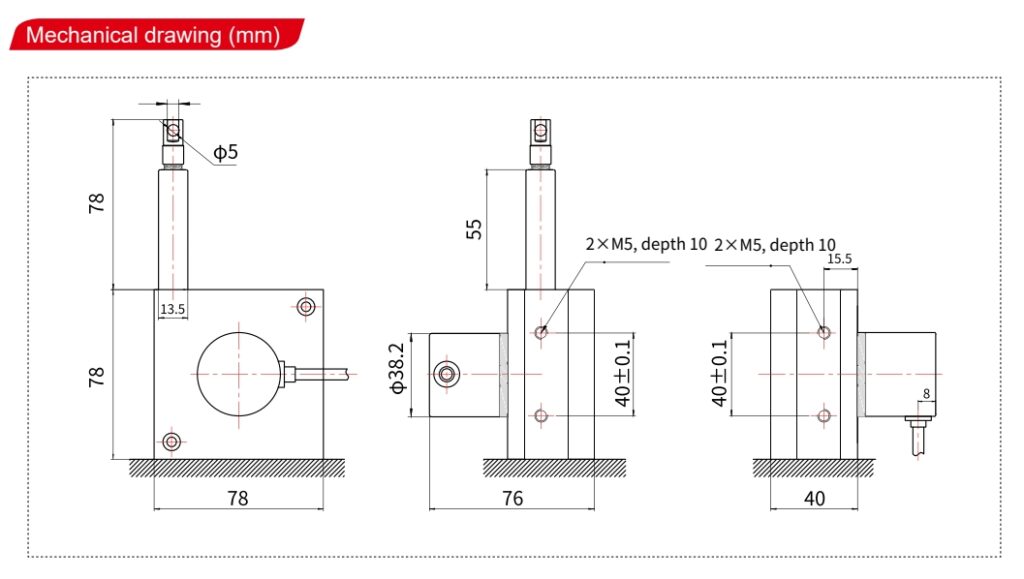

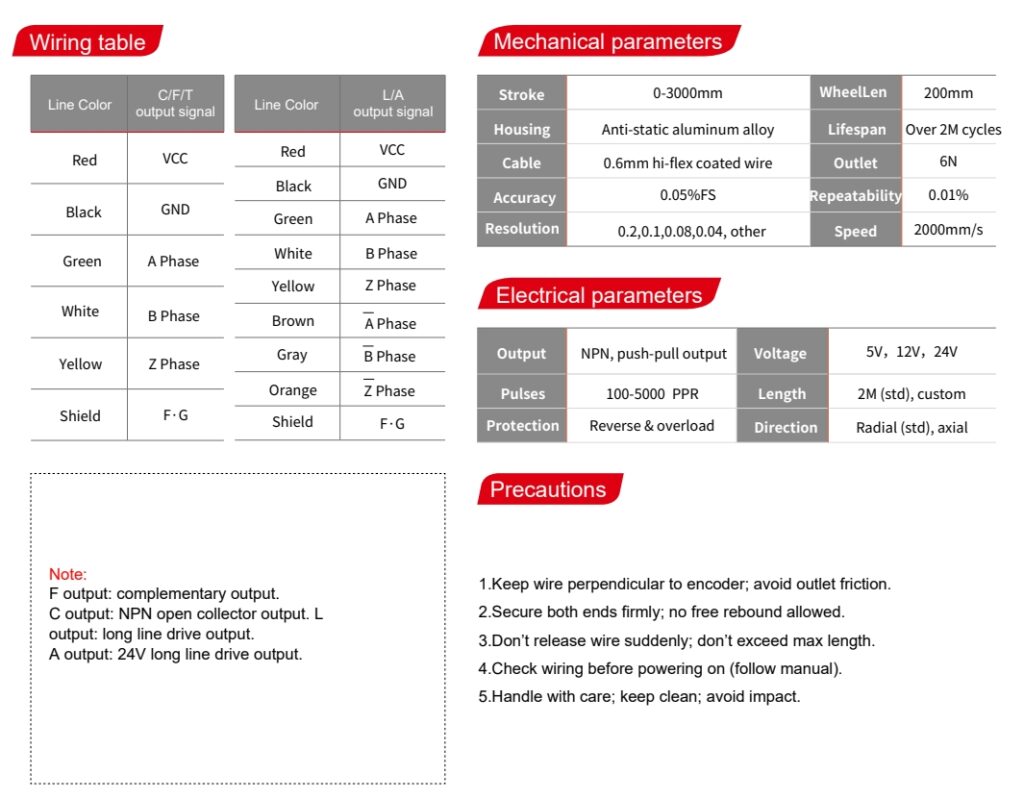

Model Definition
| Code | Meaning |
|---|---|
| LX78S | Product series |
| 1000:1000BM(0.2) 2000:2000BM(0.1) 2500:2500BM(0.08) 5000:5000BM(0.04) |
Pulse counts (resolution), e.g., 1000, 2000, 2500, 5000 |
| 05:5V 12:12V 24:24V 526:5–26V |
Working voltage |
| C: open-collector F: complementary T: push-pull L: 5V driver A: 24V driver |
Output format |
| 2M: 2m | Measurement range |
| 2G: 2m side cable 2E: 2m rear cable Standard 2m, optional length |
Cable length/direction |
| 1: round column 2: round ring 3: latch 4: lock |
Pulling head shape |
Selection Example
LX78S-1000-24F2M-2G1: draw wire encoder, resolution 1000 pulses, DC24V complementary output, 2m measuring range, 2m side cable, round column head.
