描述

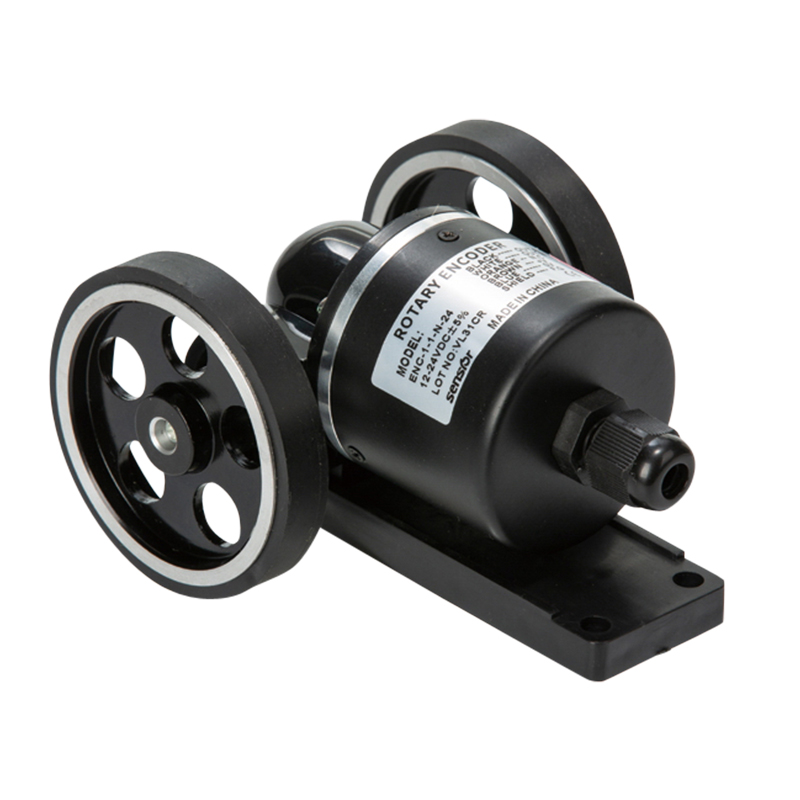

The Meter wheel encoder is a precision measurement device designed for detecting the length and speed of continuously moving objects. With its wheel-type structure, it supports international unit scaling (meter/inch), offering versatile output modes including AB phase, push-pull, and NPN. It is ideal for industrial automation tasks such as in woodworking, packaging, textile, and medical equipment. Supported by a stable power supply (5V or 12-24VDC), this encoder guarantees high reliability and durability in motion-based environments.
Features
-
Wheel detection structure, suitable for measuring the length and speed of continuously moving objects
-
Detection distance output waveform is scaled with international units (meters/inches)
-
Power supply voltage: 5VDC±5%, 12~24VDC±5%
Applications
-
Hoisting machinery, packaging machinery, aerospace, medical equipment
-
Mainly used in woodworking machinery and textile machinery
| Item | Details |
| Product Code | ENC |
| Product Type | Wheel Type |
| Output Phase | 1: AB Phase |

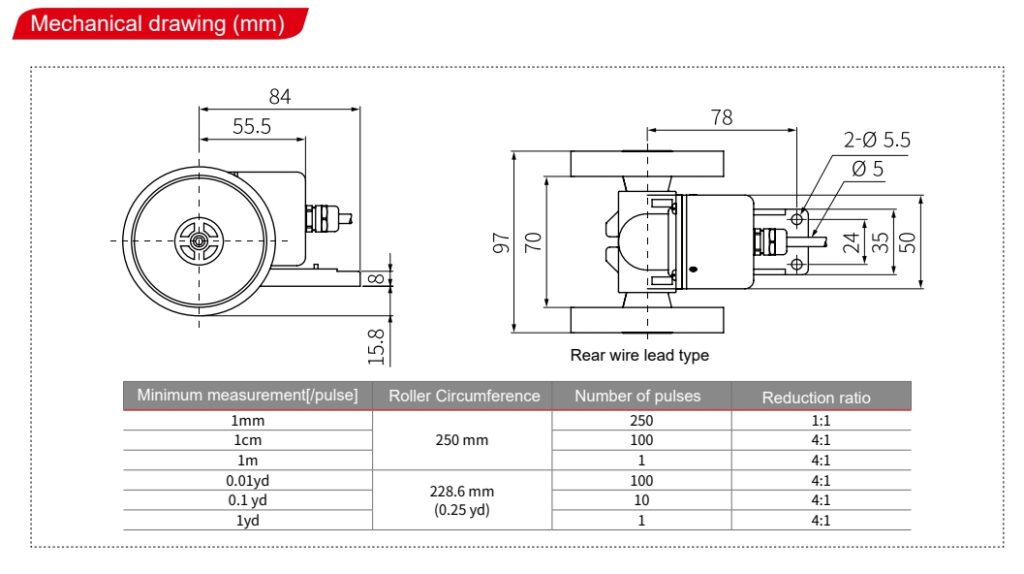

| Minimum Measurement Unit | 1: 1mm |
| 2: 1cm | |
| 3: 1m | |
| 4: 0.01yd | |
| 5: 0.1yd | |
| 6: 1yd | |

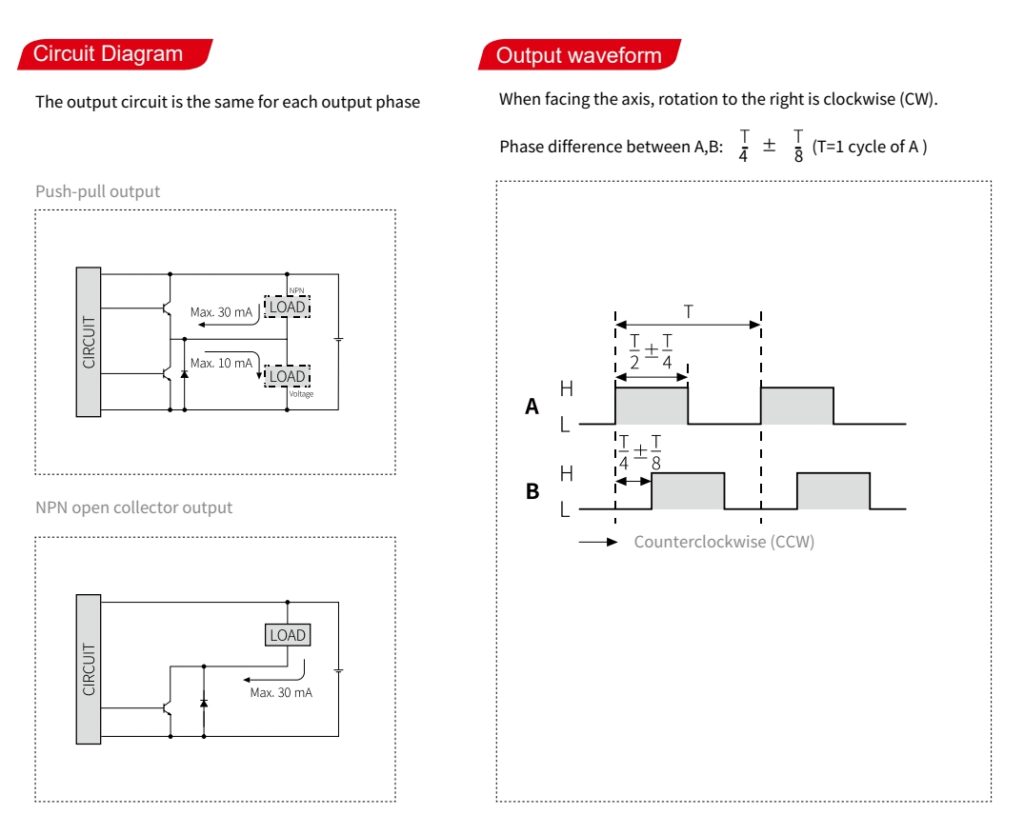

| Output Mode | T: Push-pull output |
| N: NPN open collector output | |
| Working Voltage | 5: 5VDC ±5% |
| 24: 12~24VDC ±5% | |
| Cable Length Direction | Standard: 2m cable |
| C: Cable with connector type |
