描述

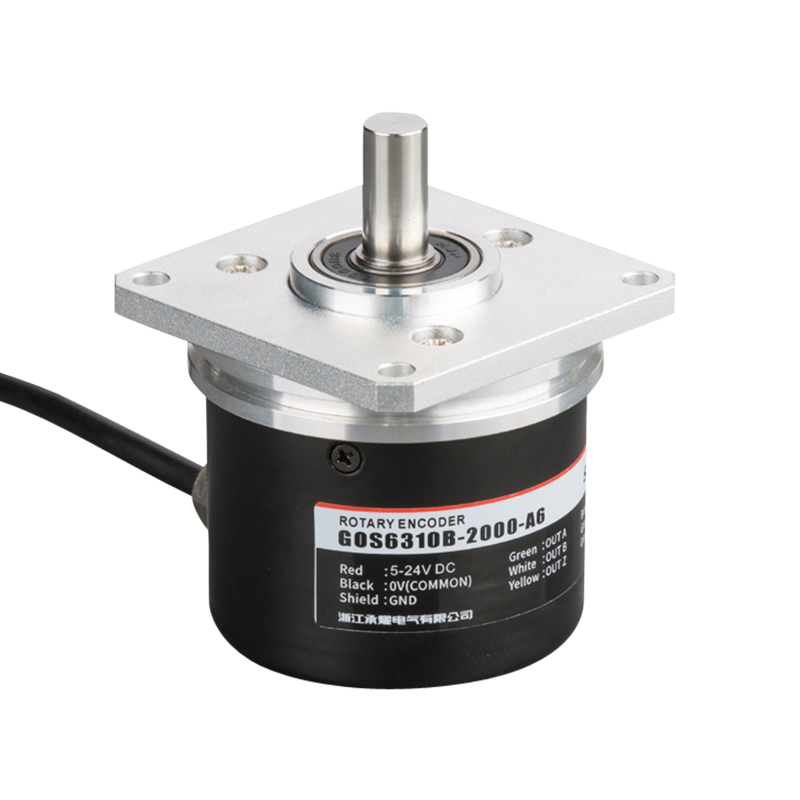

The GOS6310B Incremental Rotary Encoder provides accurate displacement and speed measurement in automation environments. This GOS6310B Incremental Rotary Encoder features a Φ63 mm oil-sealed shaft mouth, helping protect against contaminants. With shaft diameters of 10 mm or 15 mm, it offers reverse connection and short-circuit safeguards for reliable operation. Multiple output methods, including 24 V line driver, let the GOS6310B Incremental Rotary Encoder transmit signals up to 150 meters. Whether you need angle measurements or speed feedback, the GOS6310B Incremental Rotary Encoder delivers stable performance for semi-automation and full automation setups.
Features
- Oil-sealed shaft mouth treatment

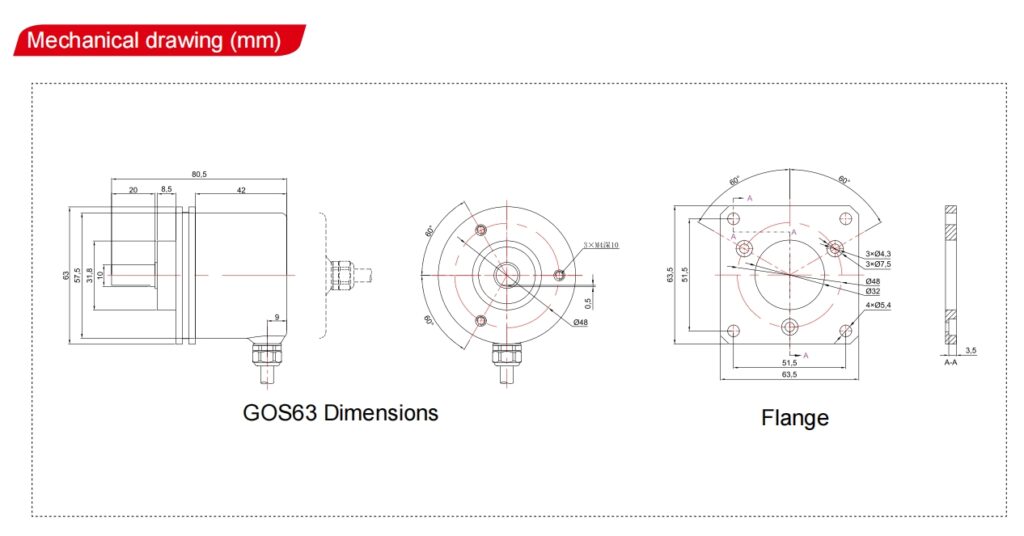

- Outer diameter: Φ63 mm; shaft diameter: Φ10 mm or Φ15 mm
- Reverse connection and short-circuit protection

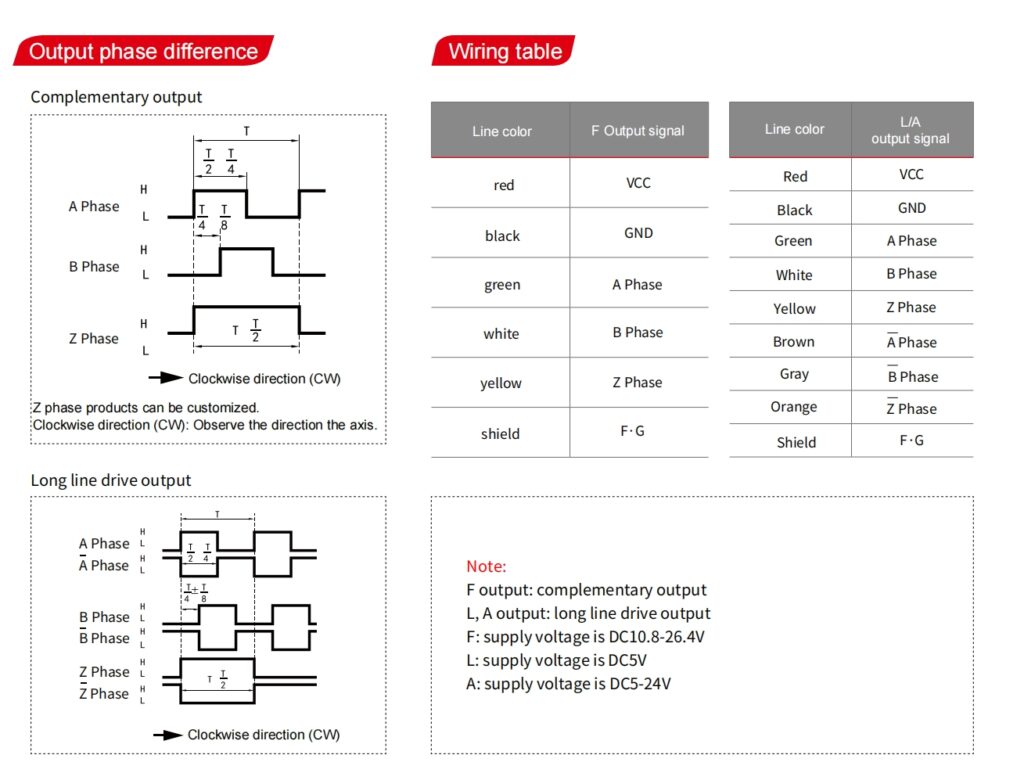

- Selectable output methods
- 24 V line driver output supports up to 150 m transmission
Applications
- Automation and semi-automation fields
- Suitable for measuring displacement, angle, speed, etc.
Product Model Code & Meaning
| Code | Meaning |
|---|---|
| G | Incremental type encoder |
| O | Magnetic encoder |
| L | Optical encoder |
| S | Solid shaft design |
| 63 | Product outer diameter: Φ63 mm |
| 10 | Main shaft diameter: Φ10 mm (also available in Φ15 mm) |
| B | Side metal exit |
| D | Rear metal exit |
| F | Side plug seat exit |
| 2000 | Possible resolutions: 10, 20, 50, 60, 100, 200, 360, 400, 500, 600, 800, 1000, 1024, 1200, 2000, 2048, 2500, 3000, 3600, 5000 |
| A | 24 V driver output |
| F | Complementary output |
| L | 5 V driver output |
| 6 | ABZ or ABZA/B/Z signals |
| 2M | Default 2 m cable (customizable) |
Example
GOS6315F-1024-A6-2M: Incremental solid-shaft magnetic encoder, Φ63 mm OD, Φ15 mm shaft, side plug seat exit, 1024 pulses, DC5–24 V driver output, ABZA/B/Z signals, 2 m cable.
