描述
The GOS58 Incremental Rotary Encoder simplifies distance and speed measurements with a robust bearing dust cover, ensuring durability. Built for automation, the GOS58 Incremental Rotary Encoder offers multiple shaft diameters—φ6mm to φ15mm—and reverse-input protection. Its 24V line driver can transmit signals over 150m, making the GOS58 Incremental Rotary Encoder ideal for long-range feedback in industrial applications.
Features
- Bearing interface with dust cover for protection

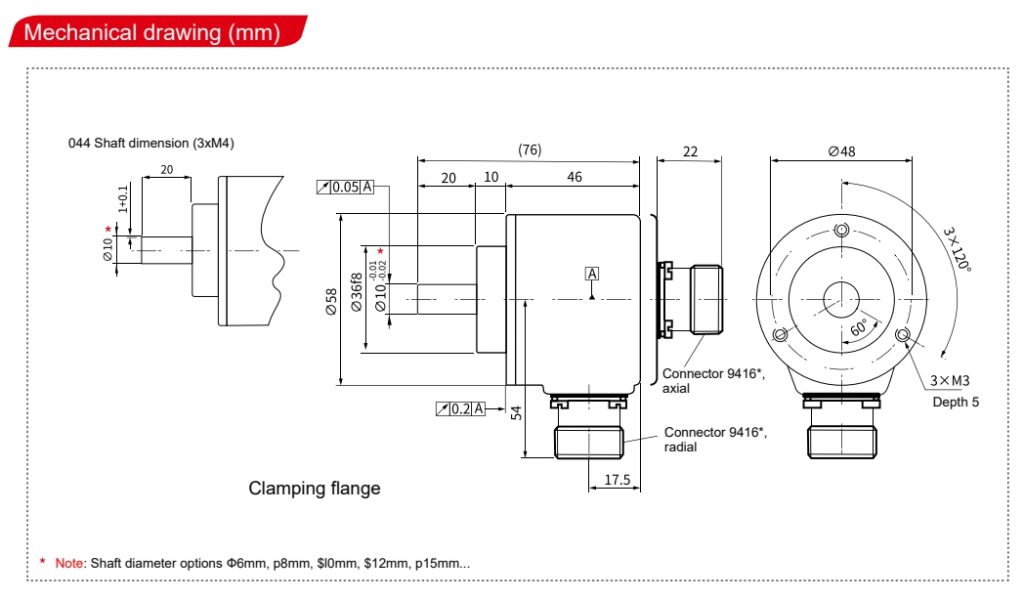

- Outer diameter: φ58mm, shaft options: φ6mm, φ8mm, φ10mm, φ12mm, φ15mm
- Reverse-input and short-circuit protection
- Multiple output methods available
- 24V line-driver output supports distances up to 150m
Application
- Automation and semi-automation fields for measuring displacement, angle, speed, counting, etc.
Product Model Definition
| Code | Meaning |
|---|---|
| G | Incremental type |
| O | Magnetic type |
| L | Optical type |
| S | Solid shaft |
| 58: φ58mm | Product outer diameter |
| 06/08/10/12/15 | Shaft diameter: φ6, φ8, φ10, φ12, φ15 |
| B | Side metal cable exit |
| D | Rear metal cable exit |
| F | Side plug connection |
| G | Rear plug connection |
| 10,20,50,60,100,200…5000 | Resolution options |

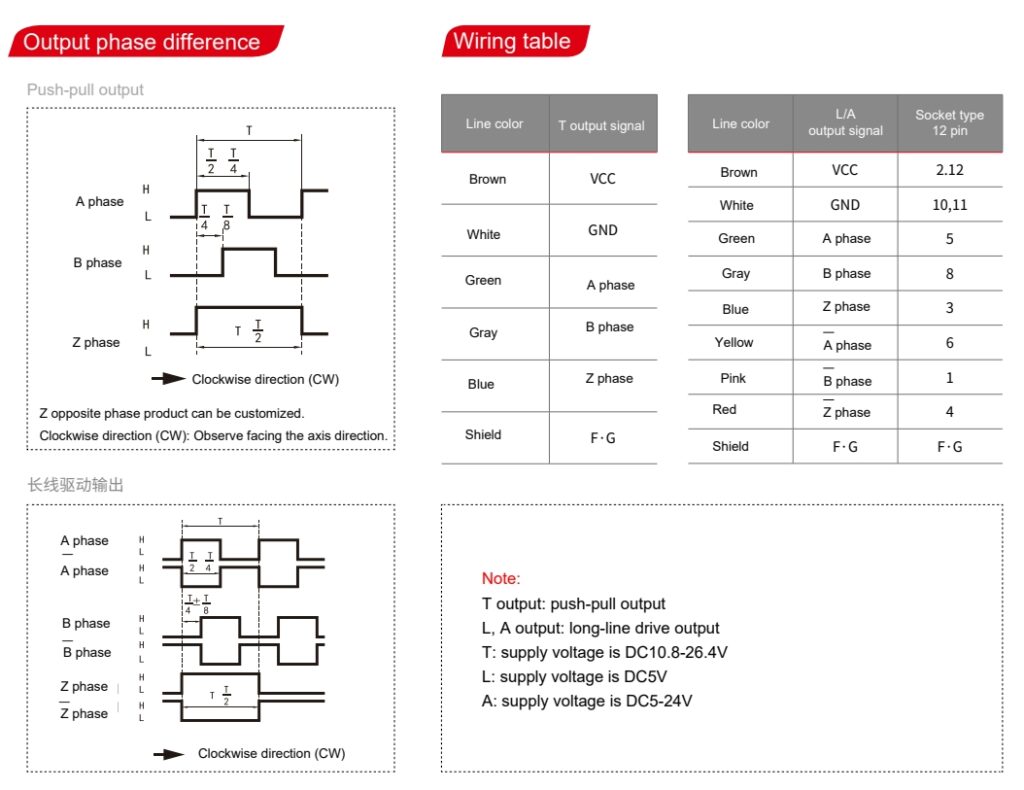

| T, L, A | Output forms (push-pull, 5V driver, 24V driver) |
| 1,2,3,4,6 | Output signals: A, AB, ABZ, etc. |
| 2M | Default 2m cable (longer length optional) |
Selection Example

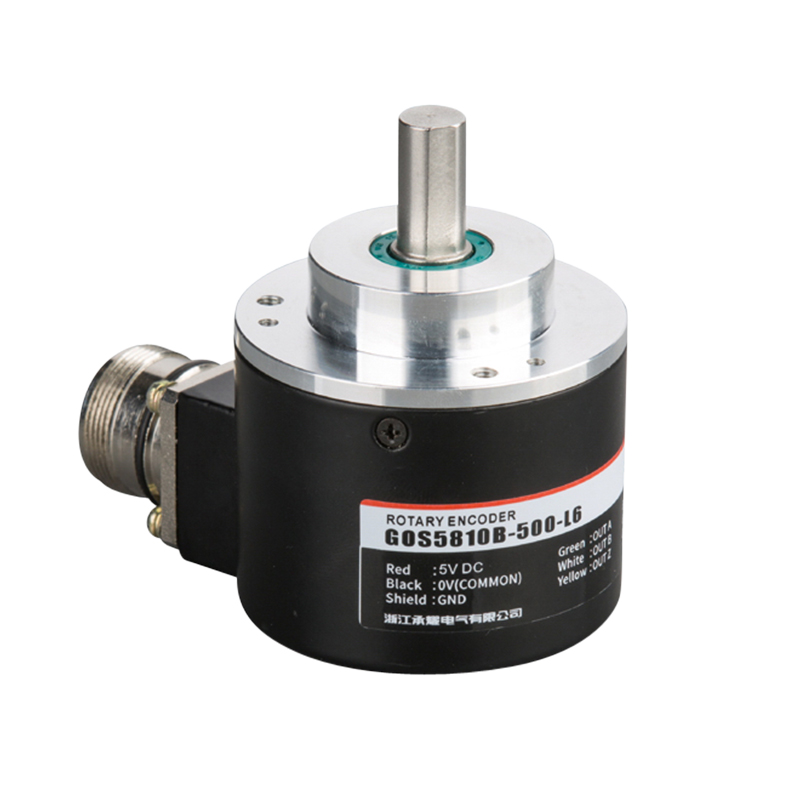

GOS5810B-500-L6-2M: incremental solid-shaft encoder, φ58mm outer diameter, φ10mm shaft, side metal cable exit with protection, 500 pulses per revolution, DC5V line driver output, ABZA/B/Z signals, 2m cable.
