描述

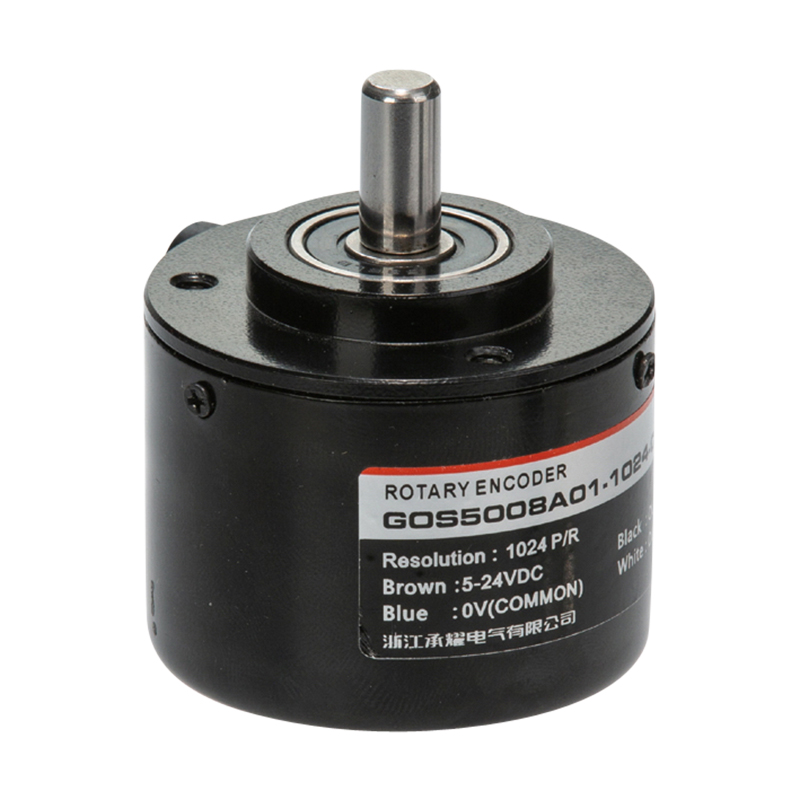

GOS5008A01 Incremental Rotary Encoder excels in rugged environments with IP65-rated sealed bearings and up to 10000 P/R resolution. The GOS5008A01 Incremental Rotary Encoder offers outstanding load-bearing capabilities to ensure reliable performance in precise position and speed control. Easily replace Omron E6C3 series by integrating the GOS5008A01 Incremental Rotary Encoder into your application for enhanced motion feedback.
Features
- Replacement for Omron E6C3 series
- Resolution up to 10000 P/R
- Uses sealed bearings, protection rating up to IP65
- Outstanding load-bearing performance
Application
- Used in harsh work environments and for precise position/speed control in automated fields
Product Model Definition
| Code | Meaning |
|---|---|
| G | Incremental type |
| O | Magnetic type |
| S | Solid shaft |
| 50: φ50mm | Product outer diameter |
| 08: φ8mm (default) | Shaft bore size |
| A: side exit rubber | Cable exit & sealing form |
| 01: Outer structure 1 | Outer configuration (appearance style) |
| 10,20,50,60…10000 | Resolution options (10,20,50,60,100,200,360,400,500,600,800,1000,1024,1200,2000,2048,2500,3000,3600,5000,10000) |

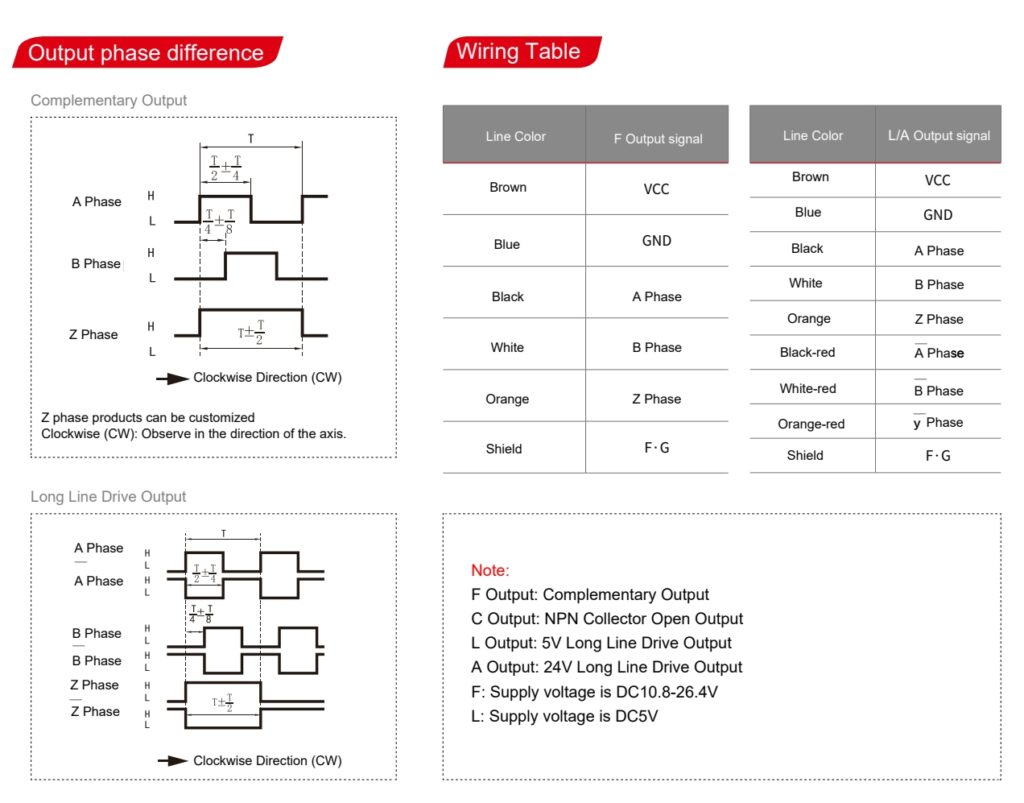

| C, F, L, A | Output forms: complementary (F), 5V driver (L), 24V driver (A), open-collector (C) |
| 1, 2, 3, 4, 6 | Output signals: A, AB, ABZ, etc. |
| 2M | Default 2m cable (optional custom length) |
Selection Example
GOS5008BA01-1000-C3-2M: Incremental solid-shaft encoder, outer diameter 50mm, shaft diameter 8mm, side exit rubber cable, external structure 1, 1000 pulses, DC10.8–26.4V complementary output, ABZ three-phase signals, 2m cable.
