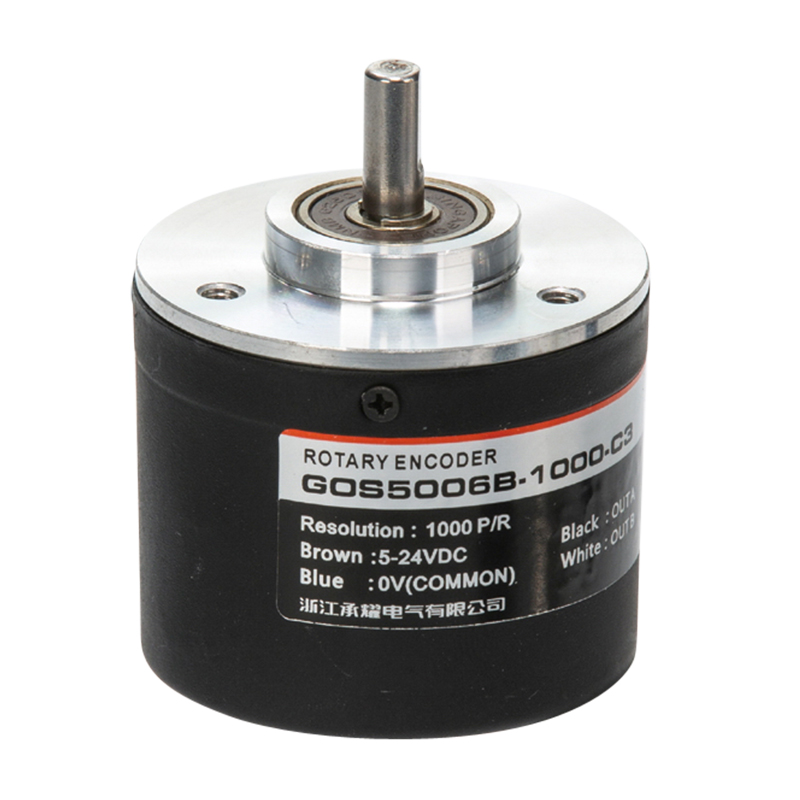

GOS5006B Incremental Rotary Encoder is designed for industrial applications requiring accurate position feedback. The GOS5006B Incremental Rotary Encoder supports resolutions up to 10000 P/R, using sealed bearings with IP64 protection to perform reliably in challenging environments. Upgrade from European E6C2 series and streamline motion control with the GOS5006B Incremental Rotary Encoder for enhanced performance.
Features
- Replacement for European E6C2 series
- Resolution up to 10000 P/R
- Uses sealed bearings with IP64 protection rating
- Conduit-sealed lead-out method
Application
- Used in industrial fields for precise position control
Product Model Definition
| Code | Meaning |
|---|---|
| G | Incremental type |
| O | Magnetic type |
| S | Solid shaft |
| 50: φ50mm | Product outer diameter |
| 06: φ6mm | Shaft diameter |
| B | Oblique cable exit with rubber protection |
| 10,20,50,60,100,200,360,400…4096 etc. | Resolution options (10, 20, 50, 60, 100, 200, 360, 400, 500, 600, 800, 1000, 1024, 1200, 2000, 2048, 2500, 3000, 3600, 4096) |

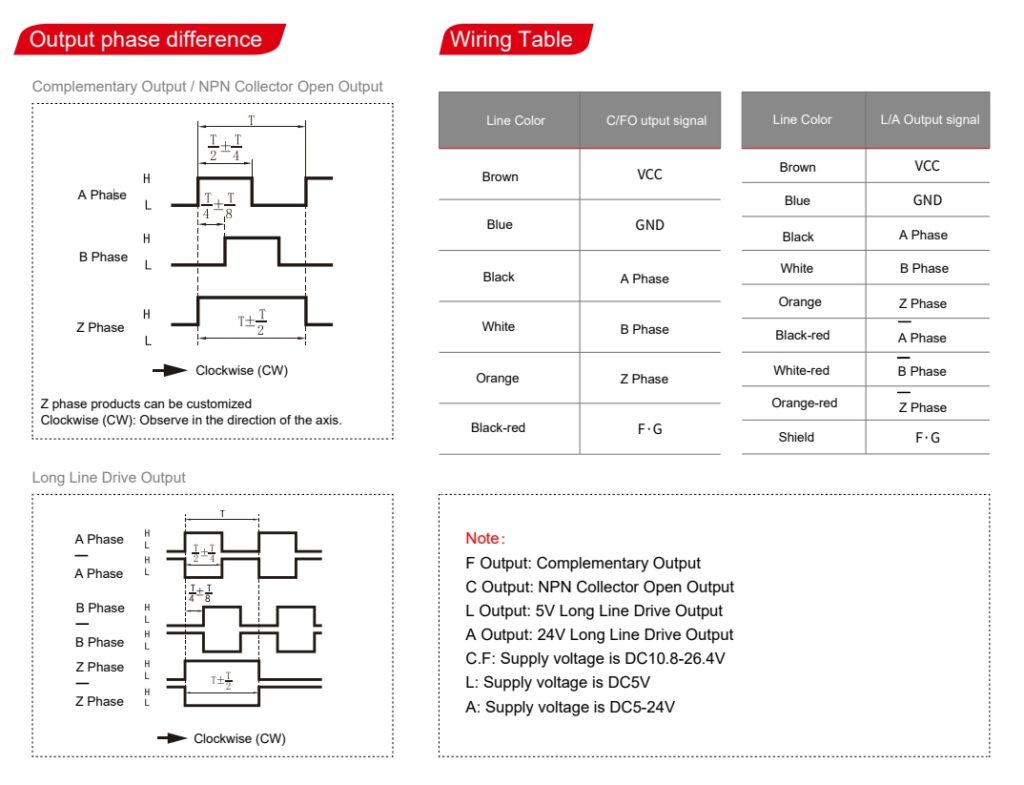

| C, F, L | Output forms: open-collector (C), complementary (F), 5V driver (L) |
| 1, 2, 3, 4, 6 | Output signals: A, AB, ABZ, etc. |
| 2M | Default 2m cable (other lengths optional) |
Selection Example
GOS5006B-1000-C3-2M: Incremental solid-shaft encoder, φ50mm outer diameter, φ6mm shaft, oblique cable exit with rubber protection, 1000 pulses, DC10.8–26.4V complementary output, ABZ three-phase signals, 2m cable.
