GOS40A Incremental Rotary Encoder delivers precise measurement up to 10000P/R with robust protection features. This GOS40A Incremental Rotary Encoder supports multiple output forms, suitable for automation and semi-automation projects where displacement, angle, speed, or length measurement is essential. Harness the reliability of the GOS40A Incremental Rotary Encoder for enhanced productivity in diverse industrial environments.
Features
Enhanced replacement for Japan OMRON E6B2 series
Maximum resolution up to 10000 P/R
Reverse connection and short-circuit protection
Multiple output options available
Equipped with 24V line driver output for 150m long-distance transmission
Applications
Automation and semi-automation fields, measuring displacement, angle, speed, length counting, etc.
Product Model and Meaning
| Code | Meaning |
|---|---|
| G | Model Category: G = Incremental |
| O | Product Type: O = Magnetic, L = Optical |
| S | Shaft Form: S = Solid Shaft |

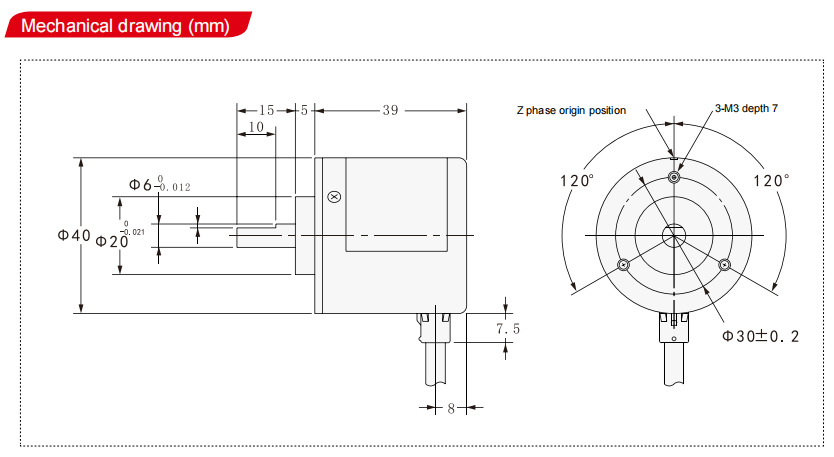

| 40 | Product Diameter: 40mm (Φ40mm) |
| (blank) | Shaft/Hole Size: Φ6mm (Default) |
| A | Cable Output & Protection: A = Side cable with protective sleeve |
| 1000 | Resolution: 10, 20, 50, 60, 100, 200, 360, 400, 500, 600, 800, 1000, 1024, 1200, 2000, 2048, 2500, 3000, 3600, 5000… |

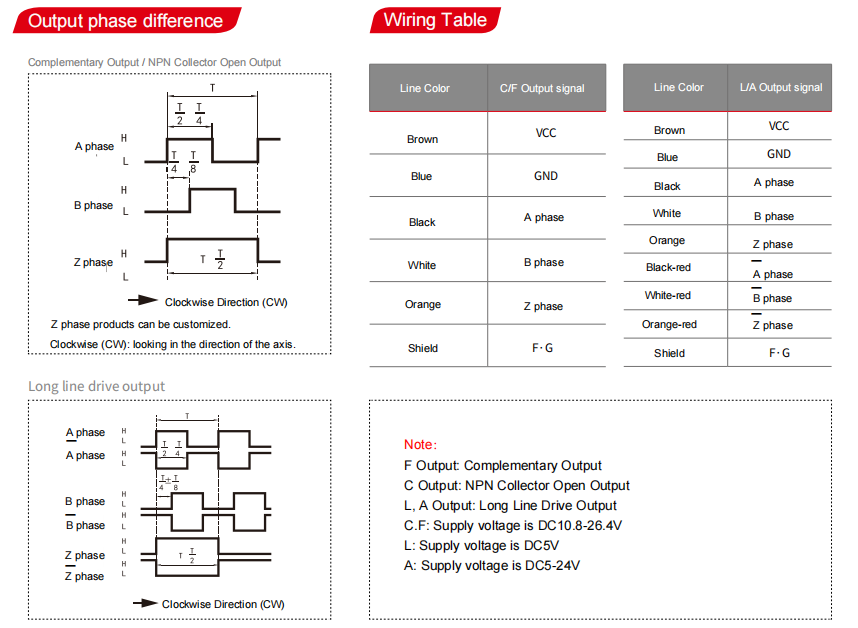

| C | Output Type: C = Open-collector, F = Complementary, L = 5V driver, A = 24V driver |
| 3 | Output Signal: 1 = A Phase, 2 = AB Phase, 3 = ABZ Phase, 4 = ABZ(A/B/), 6 = ABZ(A/B/Z) |
| 2M | Cable Length: Default 2m (or specify otherwise) |
Selection Example
GOS40A-1000-C3: Incremental solid shaft encoder, 40mm OD, 6mm shaft diameter, side cable with protective sleeve, 1000 PPR, DC10.8-26.4V open-collector output, ABZ three-phase signals, 2m cable.
