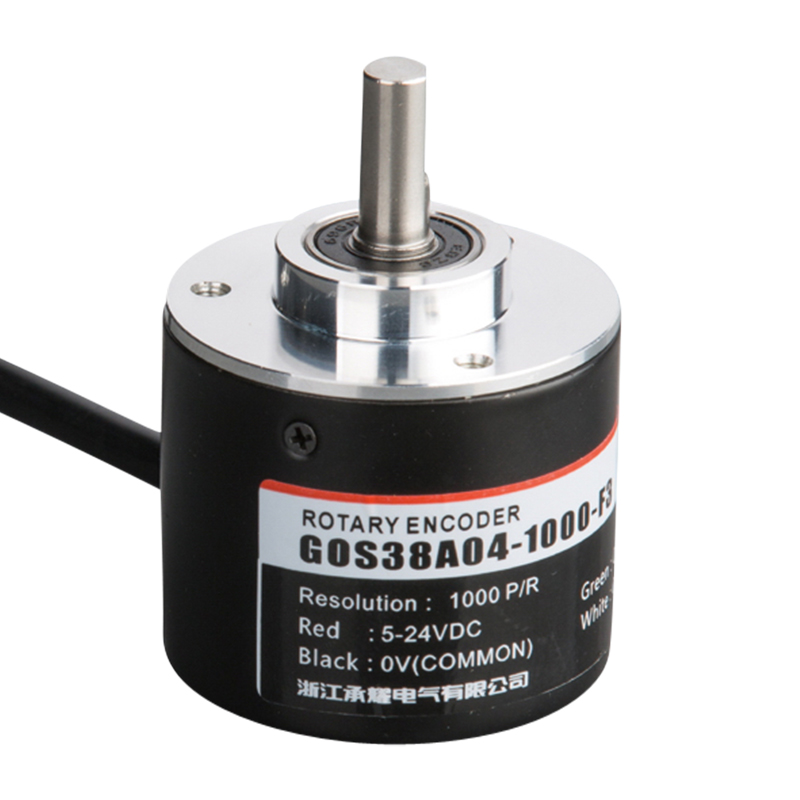

The GOS38A04 Incremental Rotary Encoder offers dependable performance in industrial control setups. This encoder reaches up to 10000 P/R, features a 38mm diameter with a 6mm shaft, and provides a durable push-pull output design. Ideal for integration with Siemens PLC systems, it is built with a tough rubber bearing for enhanced dust protection. The GOS38A04 Incremental Rotary Encoder supports multiple resolutions and ensures high accuracy in space-constrained automation environments.
Features
-
- Completely replaces Japanese KOYO TRD-2T series
- Maximum resolution up to 10000 P/R

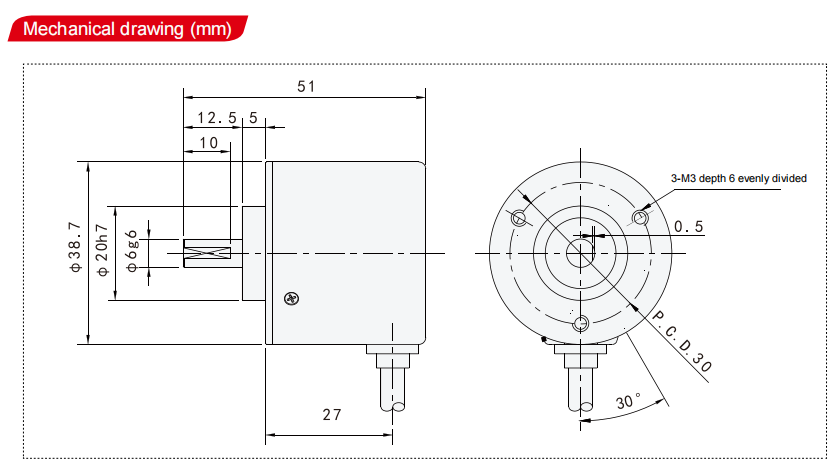

- Diameter: Φ38mm, Shaft: Φ6mm, High accuracy
- Imported black rubber bearing, dustproof
- Push-pull output circuit, increased output power
Application
-
- Compatible with Siemens PLC and similar control systems
Product Model and Meaning
-
- Example model: GOS38A04-1000-T3-2M
- Incremental solid shaft encoder
- Diameter 38mm, Shaft 6mm
- Side-exit rubber cable protector
- 1000 pulses per revolution
- DC10.8–26.4V push-pull output

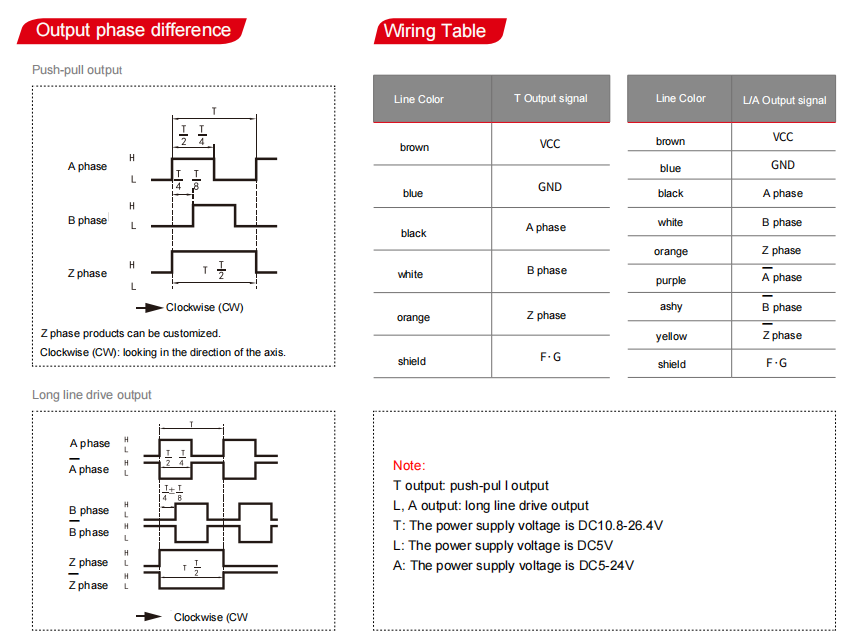

- ABZ three-phase signal
- 2-meter cable
- Example model: GOS38A04-1000-T3-2M
Model Code Table
| Code | Meaning |
|---|---|
| G | Incremental |
| O | Magnetic-Electrical |
| S | Solid Shaft |
| 38 | Outer diameter 38mm |
| A | Side-exit rubber cable |
| 04 | Mechanical design #4 |
| 1000 | Common resolutions: 10, 20, 50, 60, 100, 200, 360, 400, 500, 600, 800, 1000, 1024, 1200, 2000, 2048, 2500, 3000, 3600, 4096 |
| T | Push-pull output |
| 3 | ABZ three-phase signal |
| 2M | Default 2-meter cable; DC10.8–26.4V power |
