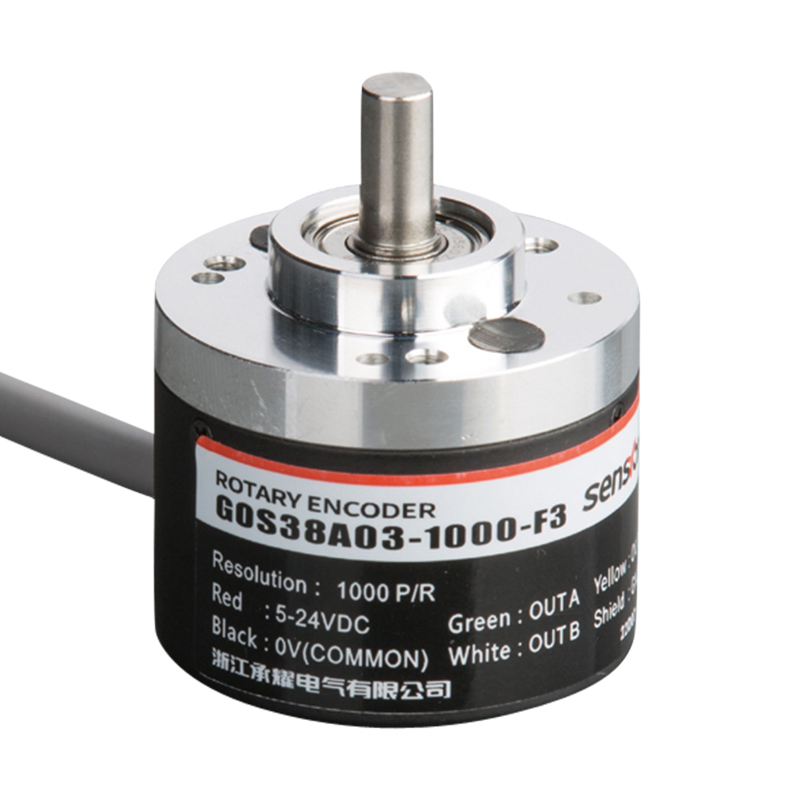

GOS38A03 Incremental Rotary Encoder delivers precise signal feedback for automated or semi-automated equipment. This GOS38A03 Incremental Rotary Encoder is designed for robust performance and long service life.
Features
- Fully compatible replacement for Japanese NEMICON OWW2 series
- Maximum resolution up to 10000 P/R
- Ultra-thin, high precision, long service life
- Equipped with incorrect wiring protection circuit
- Strong electromagnetic interference resistance
Application
- Used for signal control feedback output in fully or semi-automated equipment
Product Model and Meaning
Below is the table content in a two-column format:
| Code | Meaning |
|---|---|
| G | Incremental type |
| O | Magnetic type |
| S | Solid shaft |
| 38 | 38mm outer diameter |
| A | Side-exit rubber cable sheath |
| 03 | Outline structure 3 |
| 1000 | 1000 P/R resolution |
| F | Complementary output |
| 3 | AB phase signals |
| 0.7M | Default 0.7m cable (custom length optional) |
Selection Example
GOS38A03-1000-F3-0.7M: Incremental solid shaft encoder, 38mm diameter, 6mm shaft, side-out rubber cable sheath, 1000 pulses, DC10.8–26.4V, complementary output, ABZ three-phase signals, 0.7m cable.
