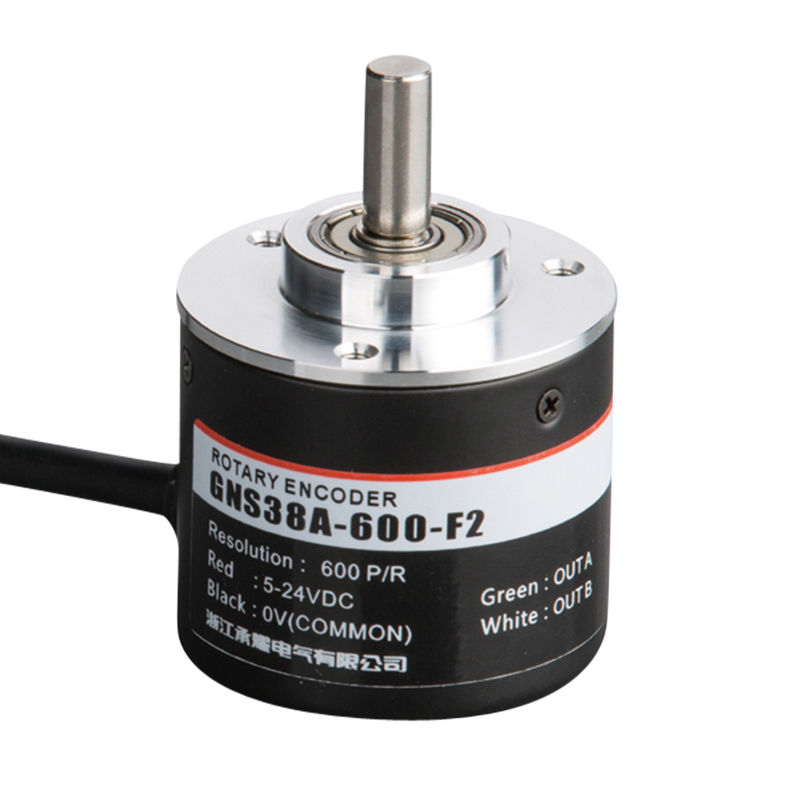

The GOS38A Incremental Rotary Encoder provides ultra cost-effectiveness and robust AB output signals for precise positioning. This GOS38A Incremental Rotary Encoder offers selectable resolutions of 100, 200, 360, 400, or 600 pulses per revolution and a customizable cable length, ensuring flexibility in woodworking, printing, packaging, and reeling applications. Featuring a side metal cable outlet, strong anti-vibration design, and over-connection protection, the GOS38A Incremental Rotary Encoder delivers reliable motion feedback under DC10.8–26.4 V. Its 38 mm diameter and default 6 mm shaft size make it well-suited for various industrial automation setups—providing accurate count, measurement, and positioning tasks in demanding environments.
Features
- Ultra cost-effective
- Selectable resolution options: 100, 200, 360, 400, 600 pulses/revolution
- Customizable cable length
- Two output channels (A, B signals)
- Equipped with over-connection protection circuit, strong anti-vibration
Applications
- Wooden machinery, tile press, printer, packaging machine, reeling machine
- Measurement and counting functions also available
Product Model Code & Meaning
| Code | Meaning |
|---|---|
| G | Incremental type |
| N | Magnetic |
| S | Solid shaft |

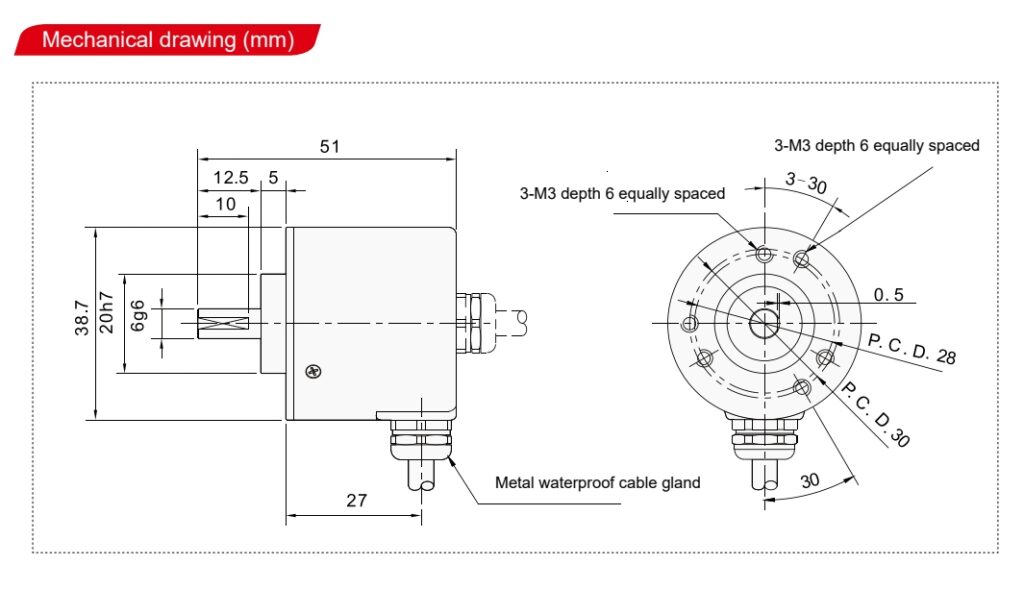

| 38 | 38 mm (Φ38 × 38 mm) product outside diameter |
| (φ6mm, default) | Standard shaft diameter |
| B | Side metal cable outlet |
| 600 | Resolutions: 100, 200, 360, 400, 600 |

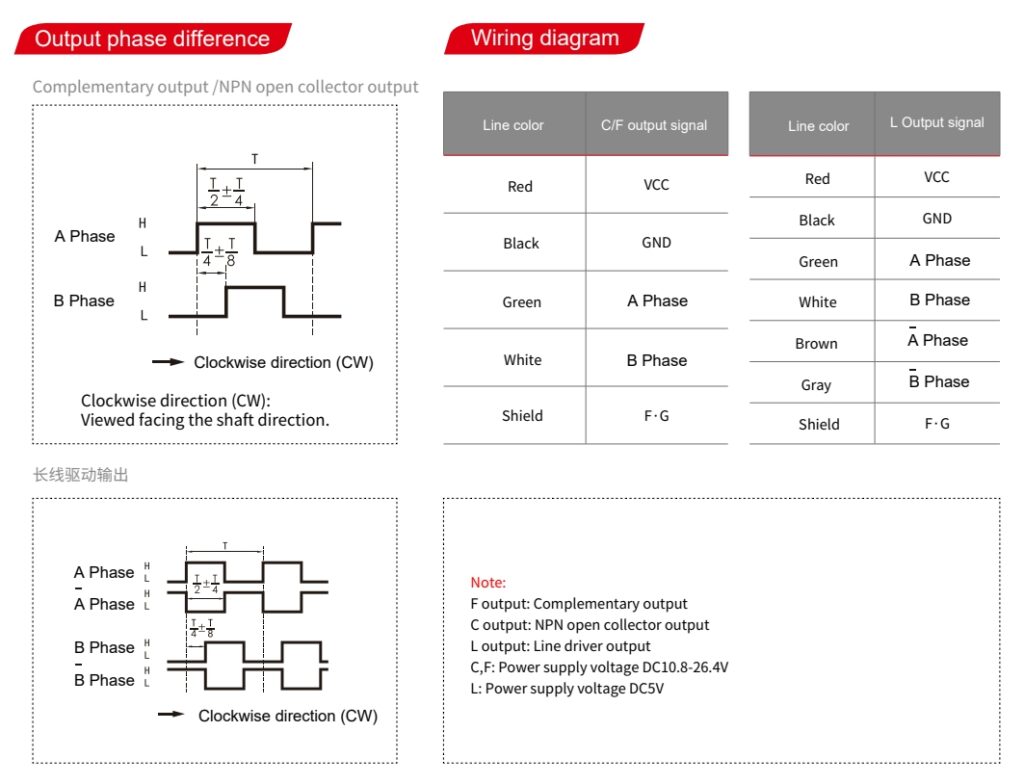

| F | Complementary (Line Driver) output |
| 2 | AB two-phase signals |
| 2M | Default cable length: 2 m |
Example
GNS38B-600-F2-2M: Incremental solid-shaft encoder, diameter 38 mm, 6 mm shaft, side metal cable outlet, 600 pulses, DC10.8–26.4 V complementary output, AB two-phase signals, 2 m cable.
