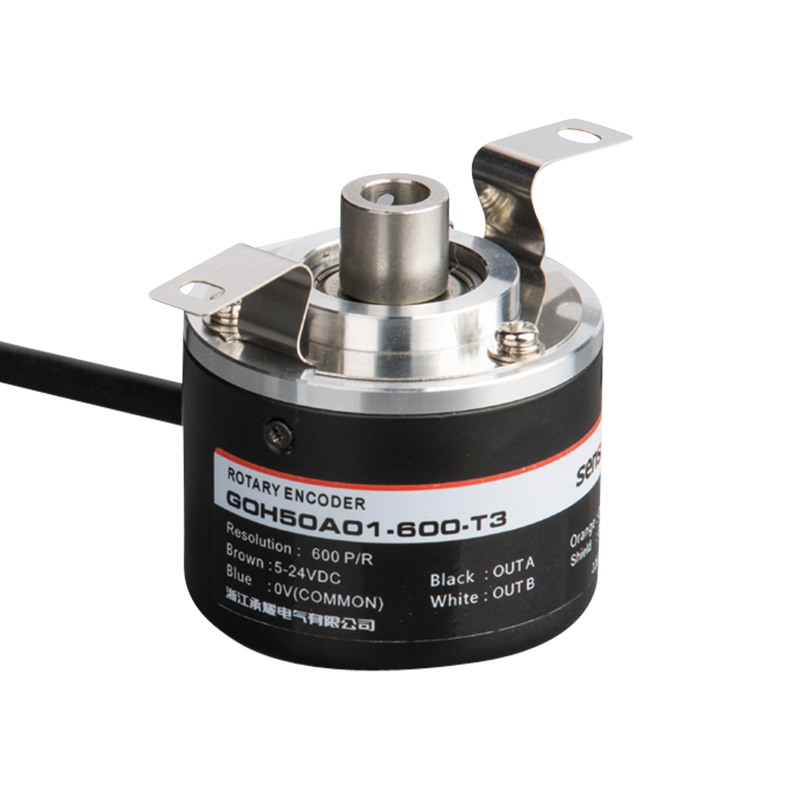

GOH50A01 Incremental Rotary Encoder suits automation and semi-automation for angles, speed, and displacement. Featuring a semi-hollow shaft (φ8mm) and a 50mm diameter, the GOH50A01 Incremental Rotary Encoder delivers powerful push-pull output and robust steel construction. With up to 4096 pulses, the GOH50A01 Incremental Rotary Encoder offers an optimized anti-interference circuit for stable feedback.
Features
- Fully replaces Japanese KOYO TRD-NH series

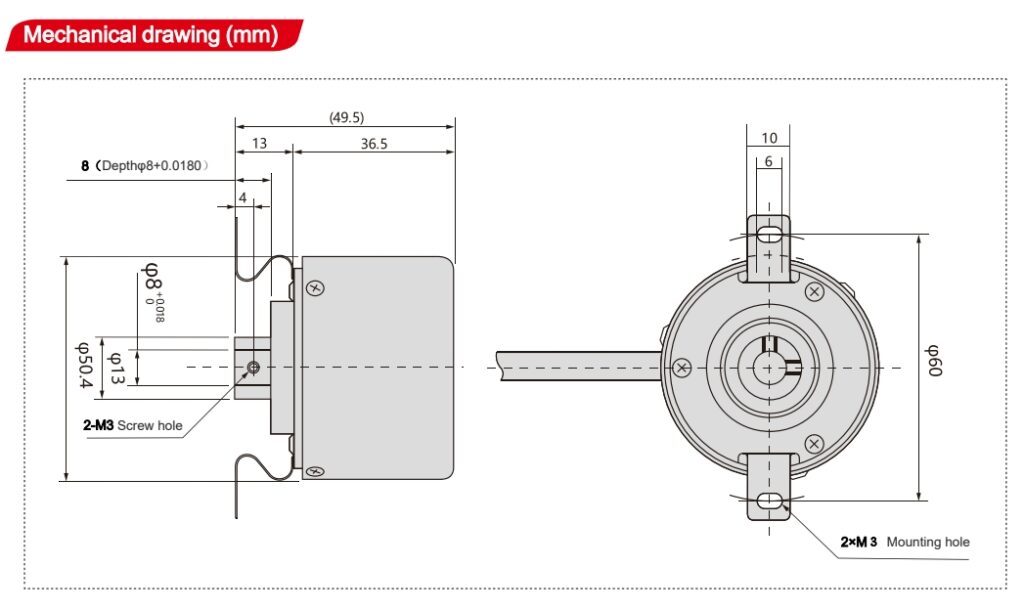

- Outer diameter: 50mm, bore: 8mm
- Push-pull output circuit, high output power
- Extended steel shaft for increased load capacity
- Anti-interference circuit optimization
Application
- Automation and semi-automation fields, for measuring displacement, angles, speed, counting, etc.
Product Model Definition
| Code | Meaning |
|---|---|
| G | Incremental type |
| O | Magnetic type |
| H | Semi-hollow shaft |
| 50: φ50mm | Product outer diameter |
| A: side rubber exit | Cable sealing form |
| 01: exterior structure | “01” indicates exterior structure 01 |
| □: φ8mm (default) | Shaft bore size |
| 10,20,50,60,100,200,360,400,500,600,800,1000,1024,1200,2000,2048,2500,3000,3600,4096 | Resolution options |

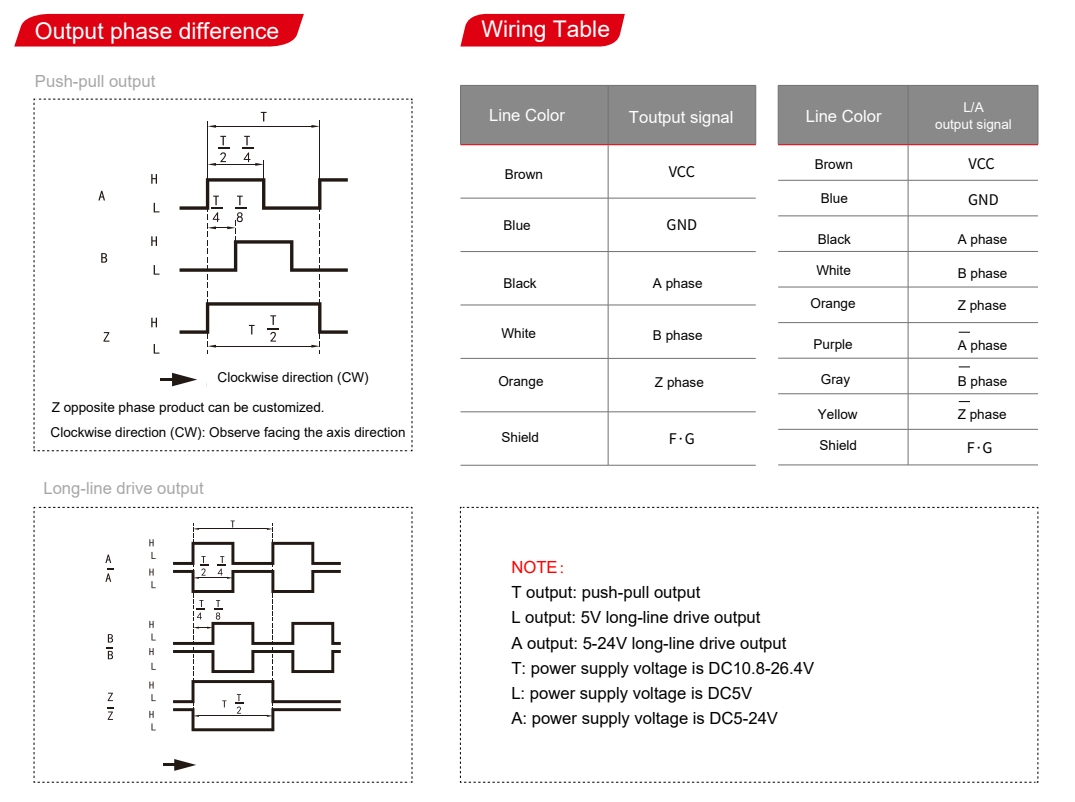

| T, L, A | Output forms: push-pull (T), 5V driver (L), 24V driver (A) |
| 1,2,3,4,6 | Output signals: A, AB, ABZ, etc. |
| 2M | Default 2m cable (longer length optional) |
Selection Example
GOH50A01-1024-T3-2M: incremental semi-hollow shaft encoder, outer diameter 50mm, bore 8mm, side rubber cable exit (exterior structure 01), resolution 1024, DC10.8–26.4V push-pull output, ABZ three-phase signals, 2m cable.
