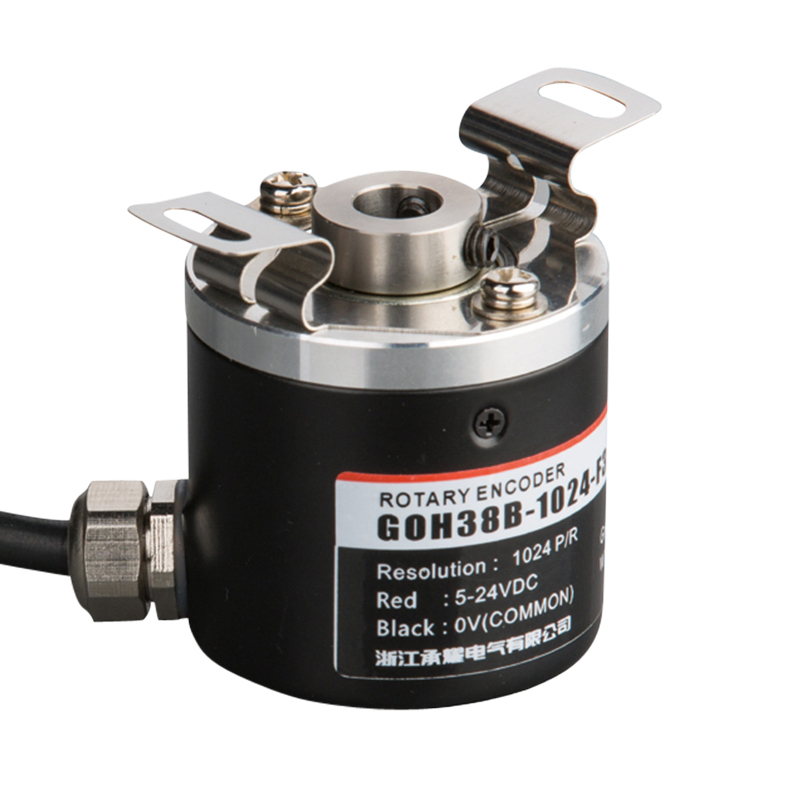

The GOH38B Incremental Rotary Encoder delivers accurate speed feedback and easy integration into PLC or motor-driven control systems. Its steel shaft and versatile output options ensure durability and flexibility in tight spaces or automated setups.
Features

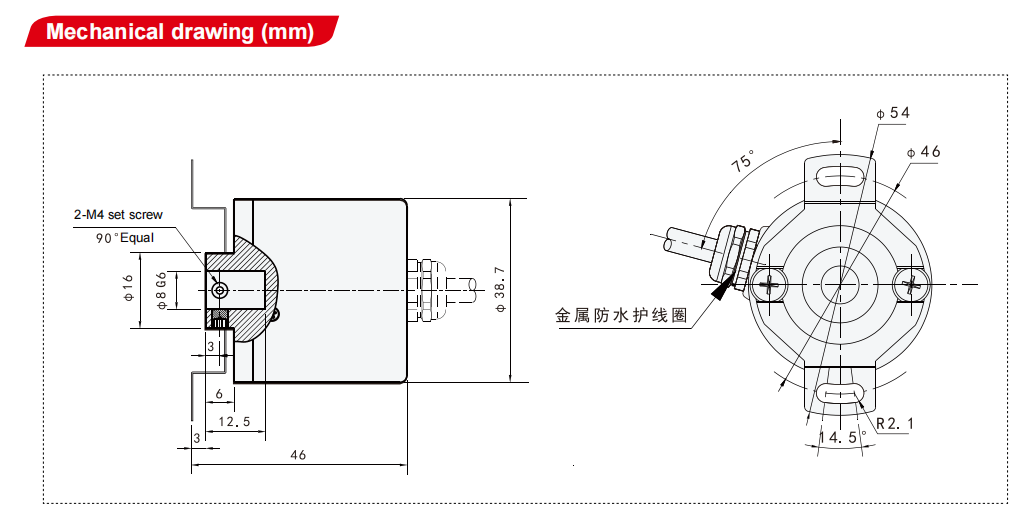

- Outer diameter φ38mm, bore φ6, φ8mm
- Shaft made of steel, not easy to wear
- Innovative metal spring piece, easy to connect
- Resolution (max): 10000P/R
- Output method optional
Applications
- Matches various PLC and control system applications
- Can be directly installed on the motor’s rear end for speed signal control
Product Model and Meaning
| Code | Meaning |
|---|---|
| G | Product category: Incremental |
| O | Magnetic type |
| H | Half hollow shaft |
| 38 | φ38mm outer diameter |
| B | Side wire, metal rear wire |
| 1024 | 10, 20, 50, 60, 100, 200, 300, …, up to 5000+ P/R |

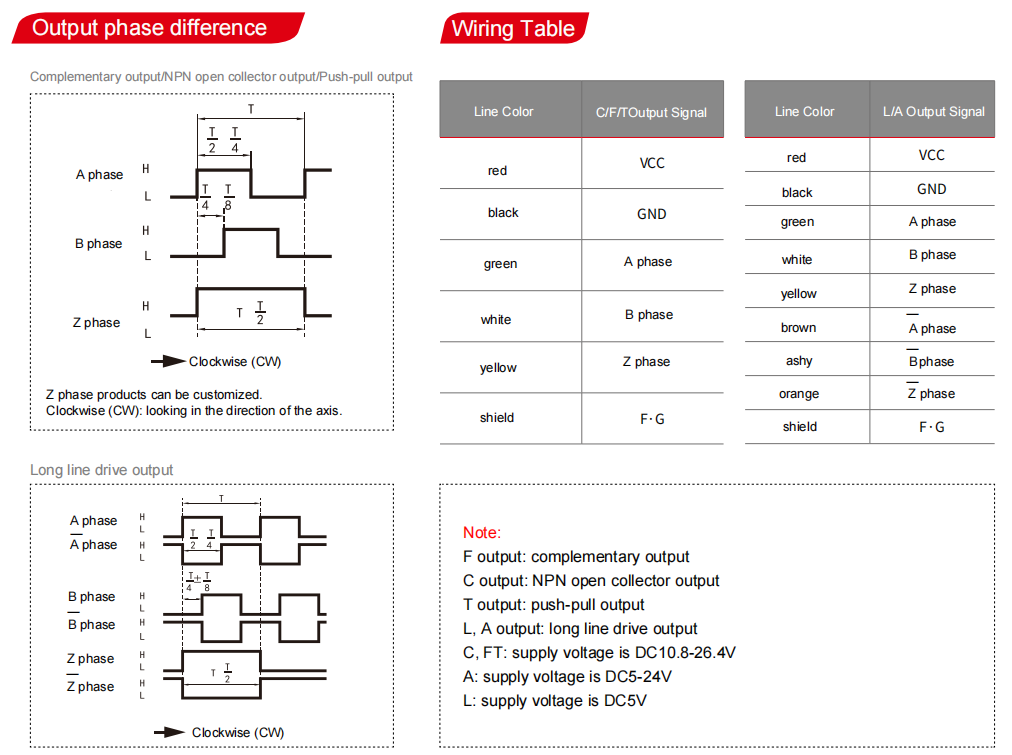

| F | Output form (Push-pull, etc.) |
| 3 | ABZ three-phase signal |
| 2M | 2-meter cable (DC10.8–26.4V supply) |
example: GOH38B-1024-F3-2M (Incremental half hollow shaft encoder, φ38mm, 8mm bore, side metal shielding wire output, 1024 pulses, DC10.8–26.4V, ABZ three-phase signal, 2-meter cable.)
