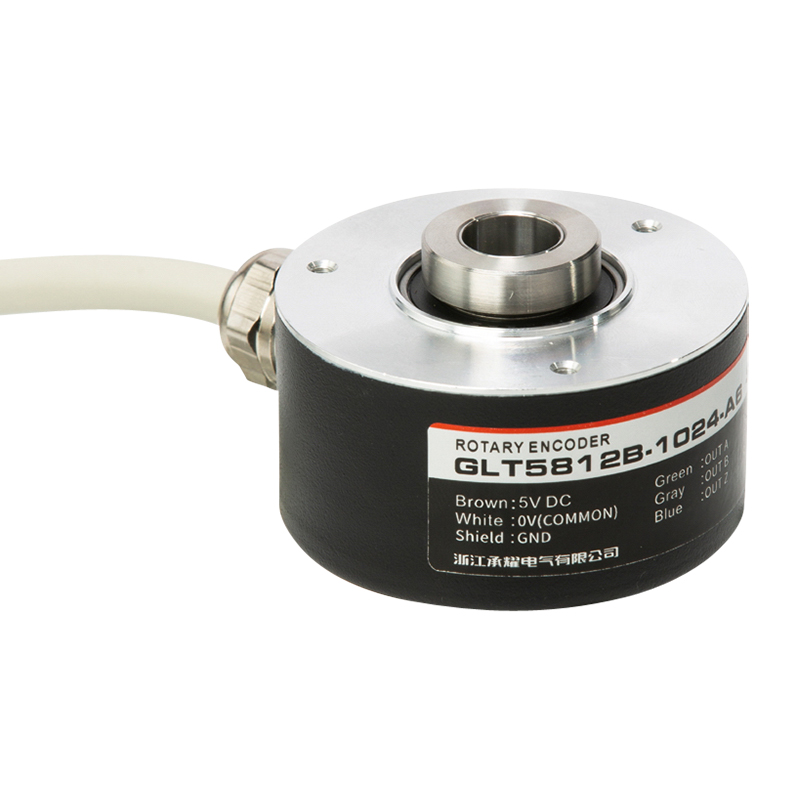

The GLT58 Incremental Rotary Encoder offers a robust Φ58 mm hollow shaft option (with 10, 12, 14, or 15 mm bores). For greater flexibility, the GLT58 Incremental Rotary Encoder includes reverse connection and short-circuit protection, plus various output methods. A 24 V line driver version enables long-distance transmission up to 150 m, making the GLT58 Incremental Rotary Encoder ideal in automation or semi-automation environments for monitoring displacement, angle, and speed.
Features
- Outer diameter: Φ58 mm
- Through hole diameters: 10 mm, 12 mm, 14 mm, 15 mm
- Equipped with reverse connection and short-circuit protection
- Multiple output methods available
- 24 V line driver output supports up to 150 m signal transmission
Applications
- Applied in automation and semi-automation fields
- Suitable for measuring displacement, angle, and speed
Product Model Code & Meaning (Two-Column Table)
| Code | Meaning |
|---|---|
| G | Incremental encoder |
| L | Optical (light-based) encoder |
| T | Through hollow shaft (with clamp ring) |
| 58 | Product outer diameter: Φ58 mm |
| 10 / 12 / 14 / 15 | Through hole diameters: 10 mm, 12 mm, 14 mm, 15 mm |
| B | Side metal cable exit |
| 1000 | Resolutions: 10, 20, 50, 60, 100, 200, 360, 400, 500, 600, 800, 1000, 1024, 1200, 2000, 2048, 2500, 3000, 3600, 5000 etc. |
| L | 5 V driver output |

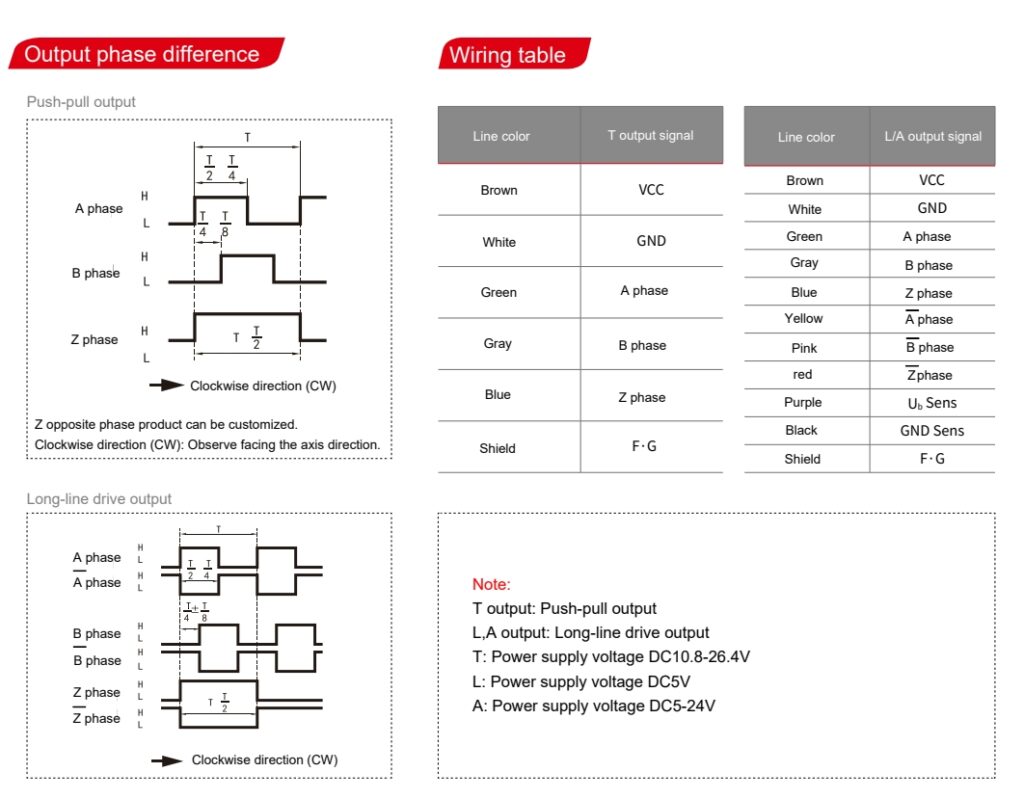

| 6 | A/B/Z or ABZA/B/Z signals |
| 2M | Default 2 m cable (longer cable optional) |
Example
GLT5812B-1000-L6-2M: Incremental hollow shaft optical encoder, outer diameter 58 mm, 12 mm bore, side metal exit, 1000 pulses, 5 V driver output, ABZA/B/Z signals, 2 m cable.
