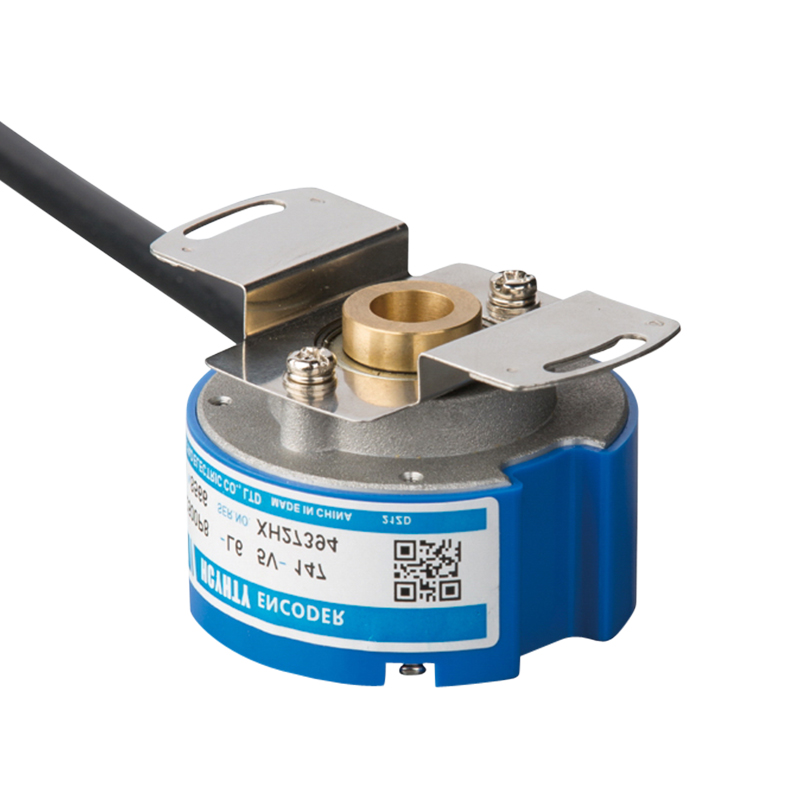

GLT48 Incremental Rotary Encoder is a direct upgrade for Damagawa OIH48 series, featuring an imported photoelectric module and 2500-line glass disc. The GLT48 Incremental Rotary Encoder suits various servo motor sizes with through-shaft options, delivering reliable performance for precise motion control. Enjoy stable and accurate output with the GLT48 Incremental Rotary Encoder in demanding automation environments.
Features
- Enhanced replacement for Japan Damagawa OIH48 series
- Various mounting brackets for different servo motor sizes
- Imported integrated photoelectric module chipset
- 2500-line high-precision glass code disc
Application
- For servo motor pairing
Product Model Definition
| Code | Meaning |
|---|---|
| G | Incremental type |
| L | Optical type |
| T | Through-shaft |

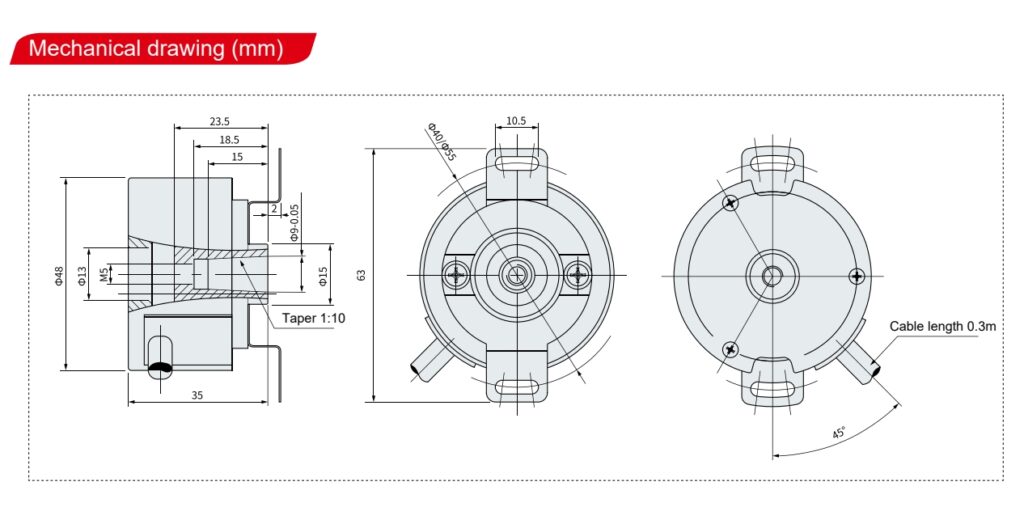

| 48: φ48mm | Outer diameter |
| □: ø9mm (default) / 08: ø8mm | Shaft/hole size |
| 500,1000,1024,2500 | Resolution options |
| 4P,6P,8P,10P | Pole pairs for output (e.g., 4P = 2 pole pairs…) |
| 0.21M | Default 0.21m cable (other lengths optional) |
Selection Example
GLT48-2500-8P-0.21M: incremental through-shaft servo encoder, φ48mm outer diameter, ø9mm bore, side cable with rubber protection, 2500 pulses, DC5V driver, 8 pole pairs, 0.21m cable.
