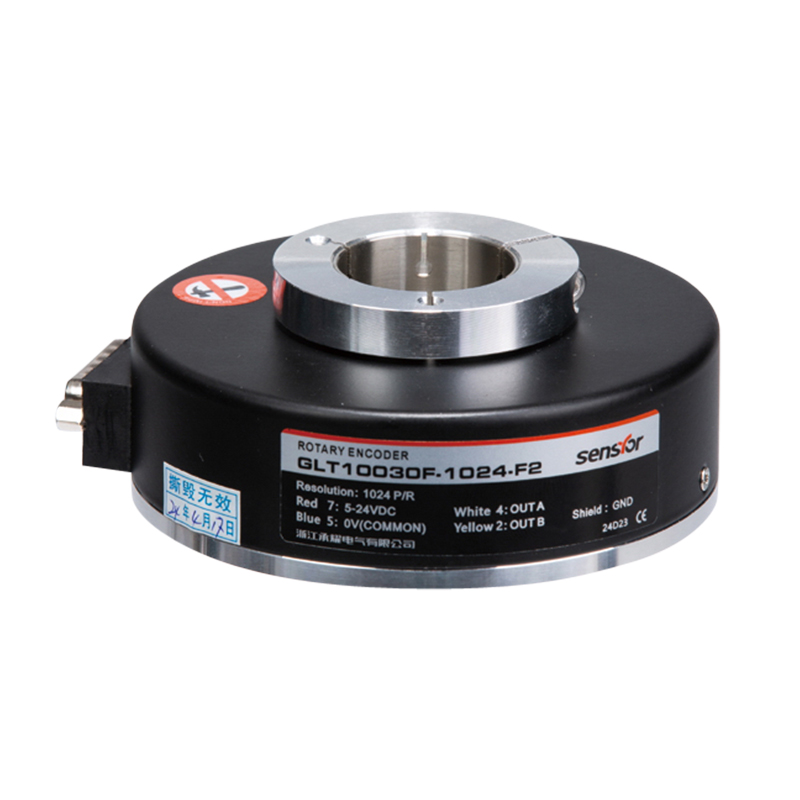

The GLT10030B Incremental Rotary Encoder is a robust, through-shaft device designed for demanding industrial environments. By integrating a heavy-load bore of 30 mm, the GLT10030B Incremental Rotary Encoder easily handles applications such as cranes, elevators, and wind power systems. Its 24 V line driver output supports reliable data transmission up to 150 meters. The easy-install PCB bracket and rear terminal connection provide quick setup, while resolutions up to 4096 ensure precise speed feedback for electric motors and other machinery. Choose the GLT10030B Incremental Rotary Encoder for dependable, high-performance automation.
Features
- Heavy-load through-hole shaft

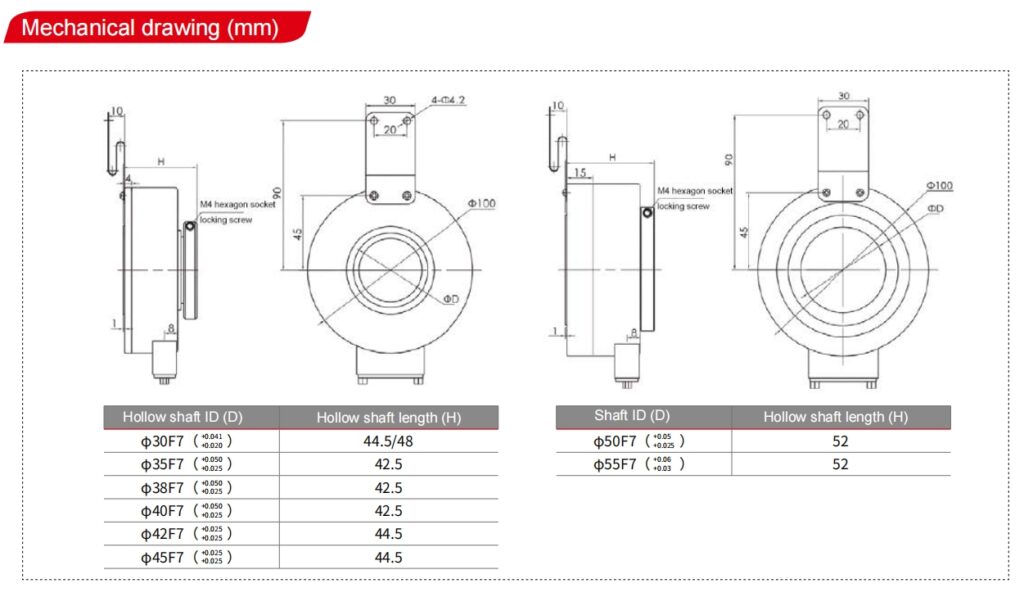

- Outer diameter: Φ100 mm, bore: Φ30 mm
- PCB bracket and rear terminal connection for easy installation
- 24 V line driver output can achieve up to 150 m long-distance transmission
Applications
- Crane industry, tower crane
- Wind power, elevator industry
- Electric motor applications, speed measurement
Product Model Code & Meaning
| Code | Meaning |
|---|---|
| G | Incremental type encoder |
| L | Optical encoder with Z track |
| P | Optical encoder without Z track |
| T | Through-shaft design |
| 100 | Product outer diameter: Φ100 mm |
| 30 | Main shaft bore: Φ30 mm (default); also available in 35, 38, 40, 45 mm |
| B | Side metal cable exit |
| F | Plug side cable exit |
| 1024 | Possible resolutions: 100,200,360,400,500,600,800,1000,1024,1200,2000,2048,2500,4096 |
| L | 5 V driver output |
| A | 24 V driver output |

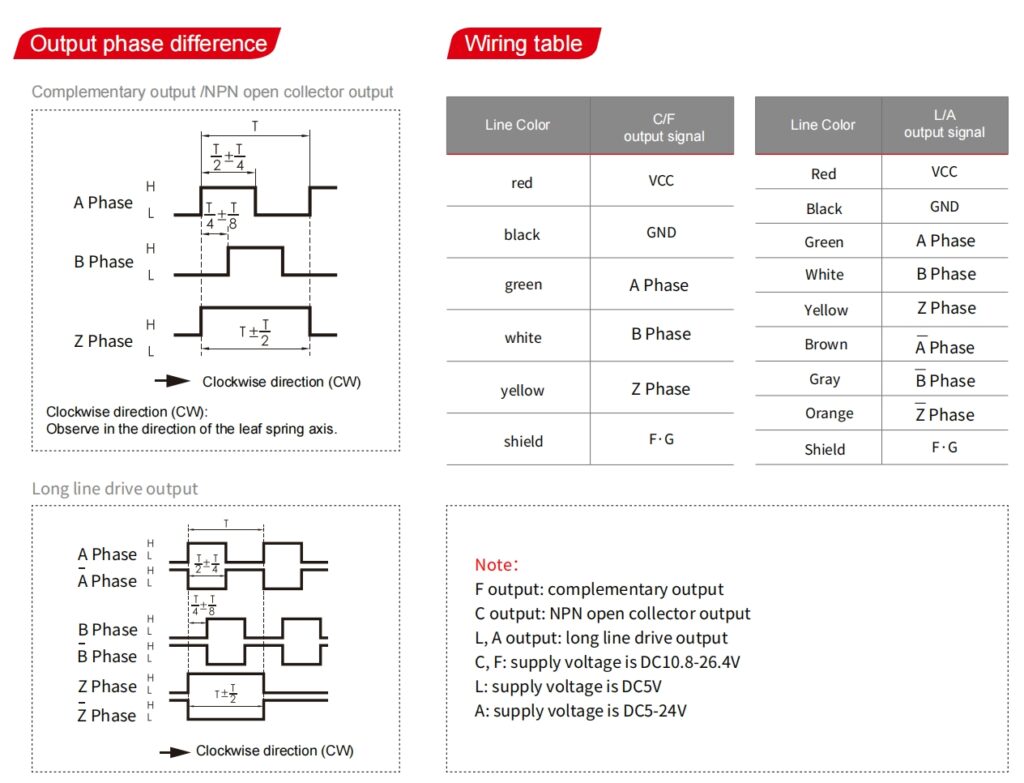

| 6 | ABZ or ABZA/B/Z signals |
| 2M | Default 2 m cable (customizable) |
Example
GLT10030B-1024-L6-2M: Incremental full through-shaft optical encoder, Φ100 mm OD, Φ30 mm bore, side metal cable exit, 1024 pulses, DC5 V output, ABZA/B/Z signals, 2 m cable.
