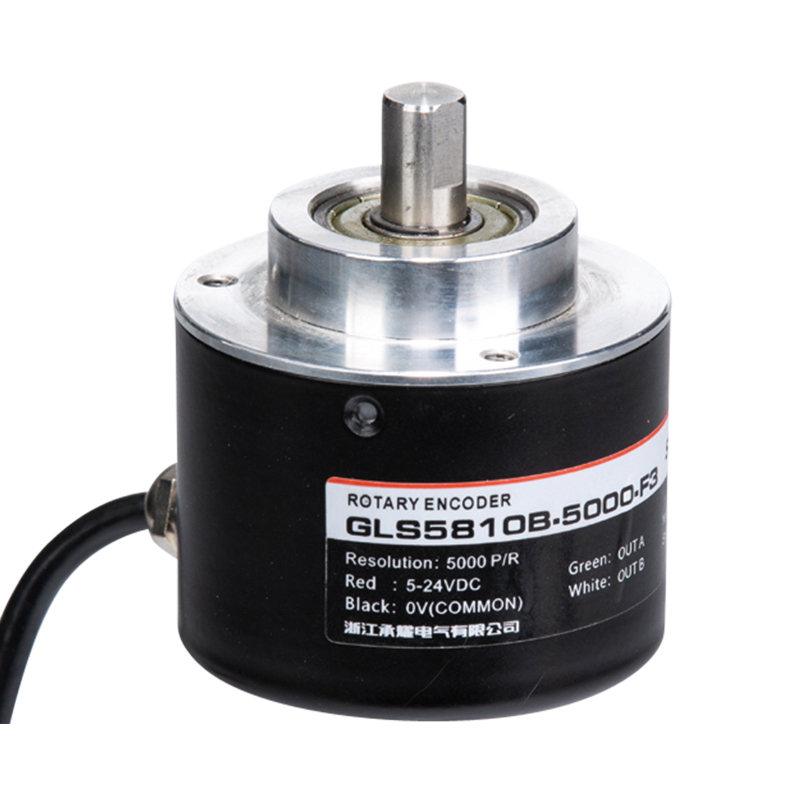

GLS58B02 Incremental Rotary Encoder delivers precision measurement of displacement, angle, and speed. The GLS58B02 Incremental Rotary Encoder features multiple shaft diameters (φ6–φ15mm), robust dust-cover protection, and 24V line-driver capability for up to 150m signal transmission. Reverse-input and short-circuit safeguards make the GLS58B02 Incremental Rotary Encoder ideal for automation systems.
Features
- Bearing interface with dust cover treatment

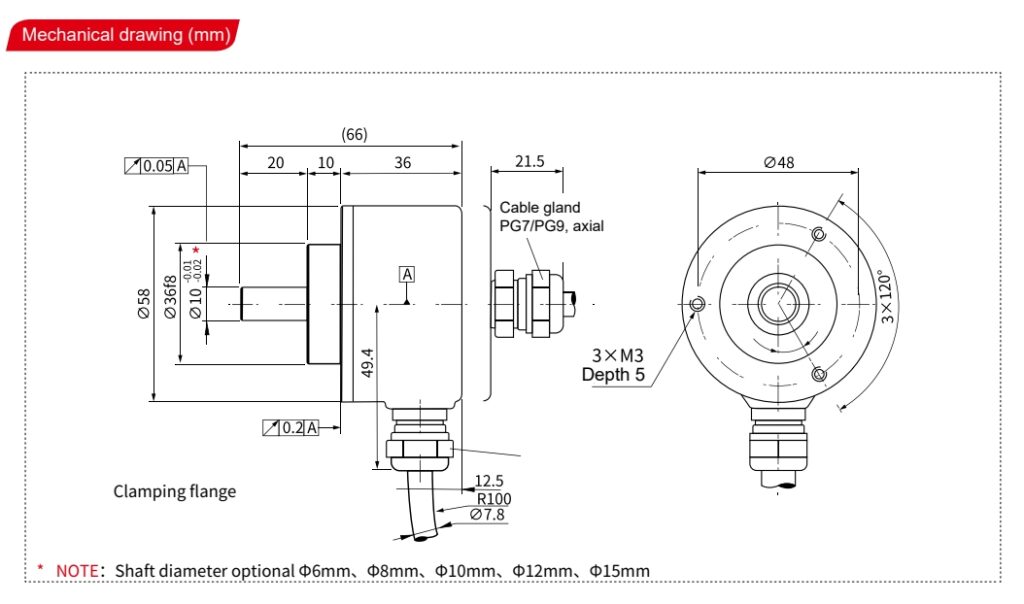

- Outer diameter: φ58mm; optional shaft diameters: φ6mm, φ8mm, φ10mm, φ12mm, φ15mm
- Reverse-input protection and short-circuit protection
- Multiple output methods available
- 24V line-driver output for up to 150m transmission distance
Applications
- Automation and semi-automation fields: measures displacement, angle, speed, counting, etc.
Product Model Definition
| Code | Meaning |
|---|---|
| G | Incremental type |
| O | Magnetic type |
| L | Optical type |
| S | Solid shaft |
| 58: Φ58mm | Product outer diameter |
| 06/08/10/12/15 | Shaft diameter: φ6mm, φ8mm, φ10mm, φ12mm, φ15mm |
| B | Side metal cable exit |
| D | Rear metal cable exit |
| F | Side plug connection |
| G | Rear plug connection |
| 10,20,50,60,100,… | Resolutions (up to 5000 or more) |

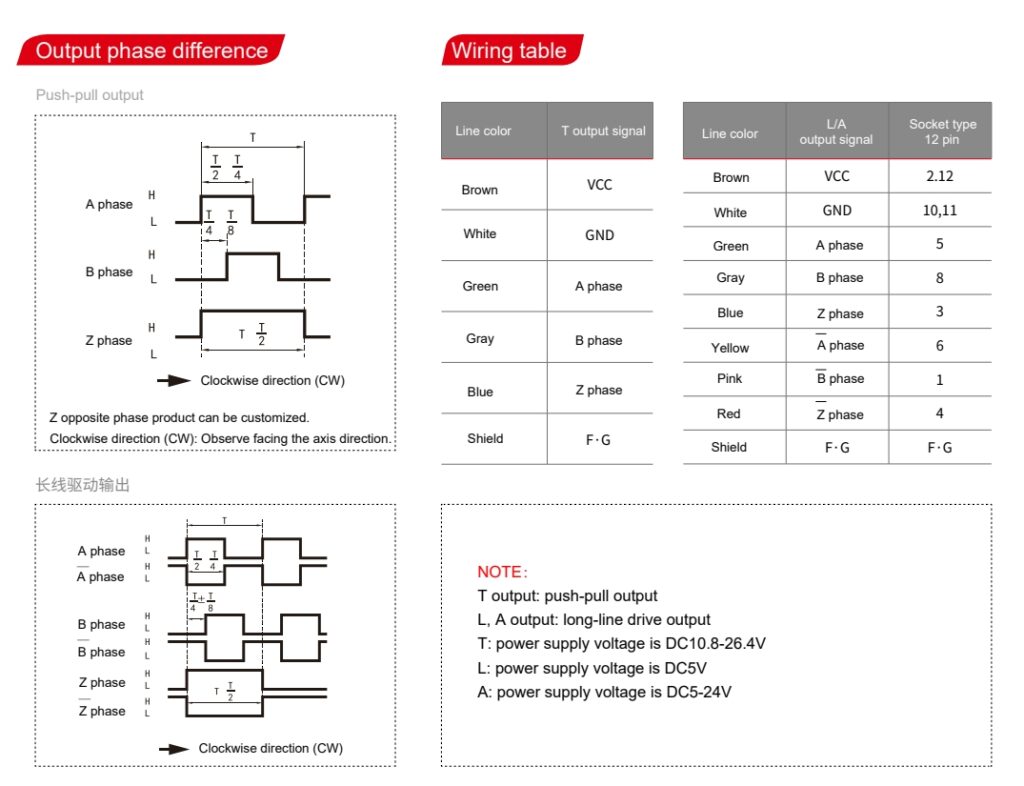

| T, L, A | Output forms: T=Push-pull, L=5V driver, A=24V driver |
| 1,2,3,4,6 | Output signals: A, AB, ABZ, etc. |
| 2M | Default cable length 2m (longer optional) |
Selection Example
GOS5810B-500-L6-2M: Incremental solid-shaft encoder, φ58mm diameter, φ10mm shaft, side metal exit with protective housing, 500 pulses per revolution, DC5V driver output, ABZ A/B/Z signals, 2m cable.
