描述

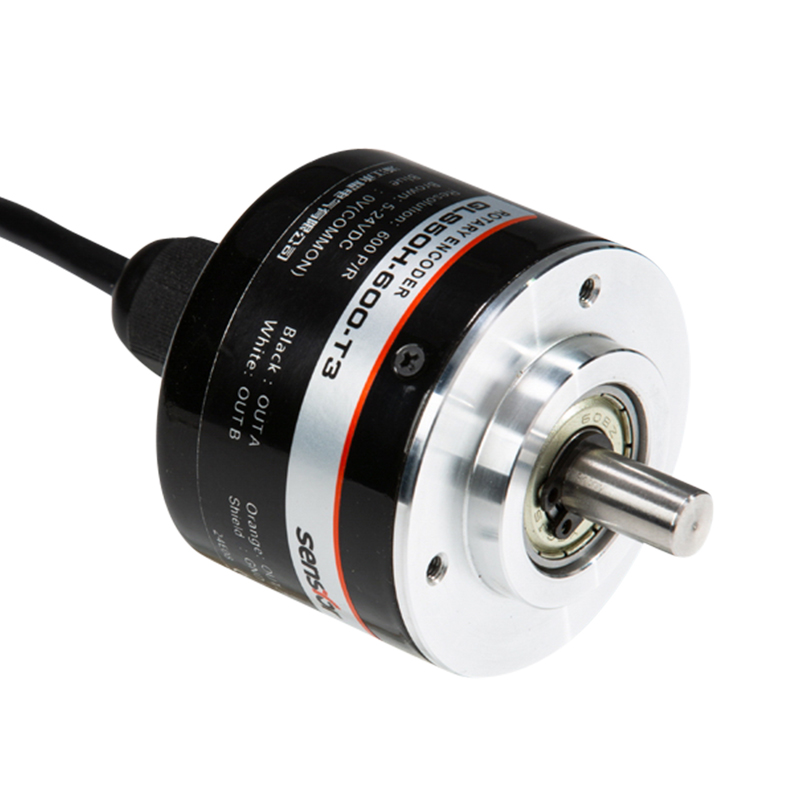

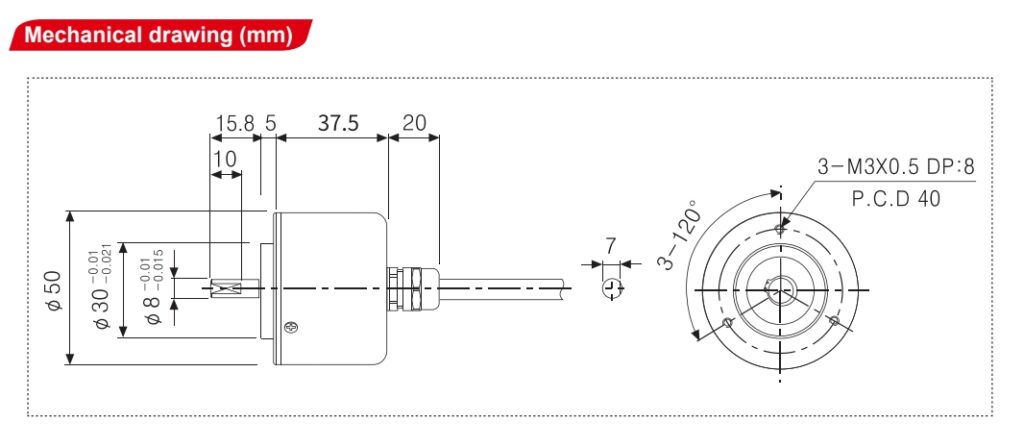

GLS50H Incremental Rotary Encoder is designed for automation and semi-automation applications, ensuring dust/oil protection and versatile output options. The GLS50H Incremental Rotary Encoder features a 50mm diameter, 8mm solid shaft, short-circuit protection, and push-pull output for enhanced power. With up to 4096 pulses available, the GLS50H Incremental Rotary Encoder meets demanding displacement, angle, and speed requirements.
Features
- Completely replaces Korean Autonics E50S series
- Uses plastic waterproof connectors, dustproof and oil-proof
- Includes interface and circuit short-circuit protection
- Push-pull output circuit, increased output power
- 24V line driver output available for up to 150m transmission
Application
- Automation and semi-automation fields, for measuring displacement, angles, speed, counting, etc.
Product Model Definition

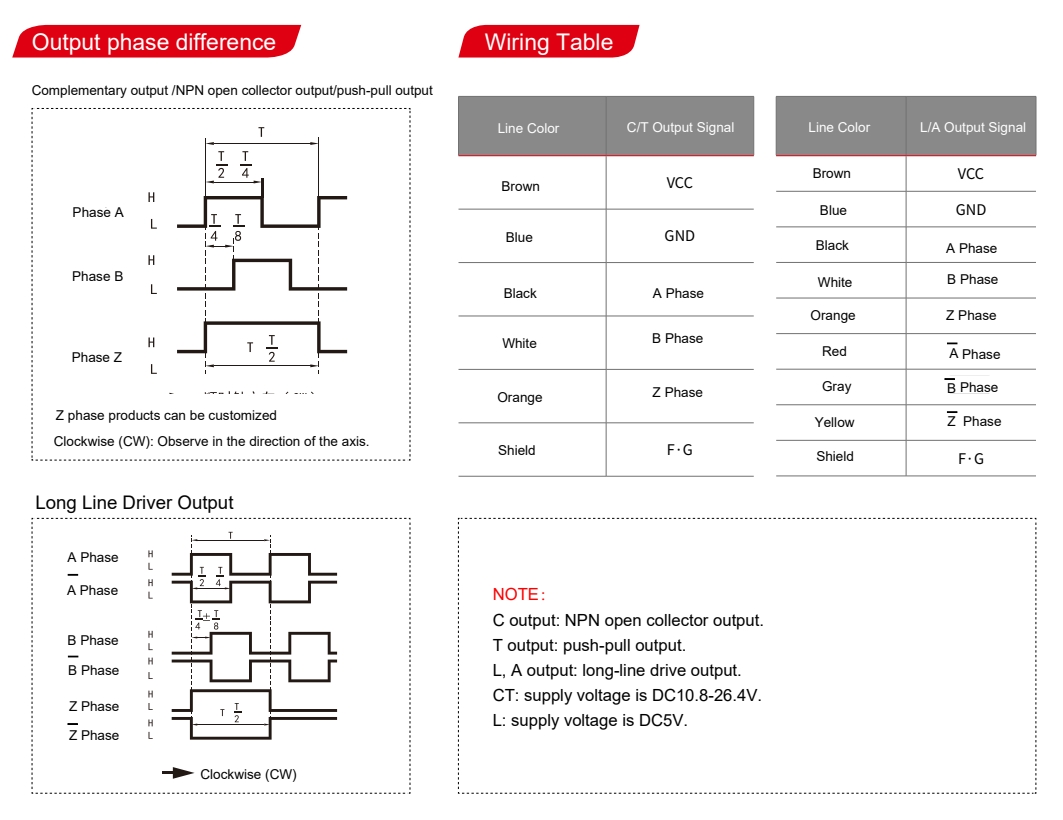

| Code | Meaning |
|---|---|
| G | Incremental type |
| L | Optical type |
| S | Solid shaft |
| 50: φ50mm | Product outer diameter |
| □: φ8mm (default) | Shaft diameter |
| H: rear plastic exit | Cable exit & sealing form |
| 10,20,50,60,100,200,360,400,500,600,800,1000,1024,1200,2000,2048,2500,3000,3600,4096 | Resolution options |
| C, T, L, A | Output forms: open-collector, push-pull, 5V driver, 24V driver |
| 1,2,3,4,6 | Output signals: A, AB, ABZ, etc. |
| 2M | Default 2m cable (longer lengths optional) |
Selection Example
GLS50H-1000-T3-2M: Incremental solid-shaft encoder, outer diameter 50mm, shaft diameter 8mm, rear plastic cable exit, resolution 1000, DC10.8–26.4V push-pull output, ABZ three-phase signals, 2m cable.
